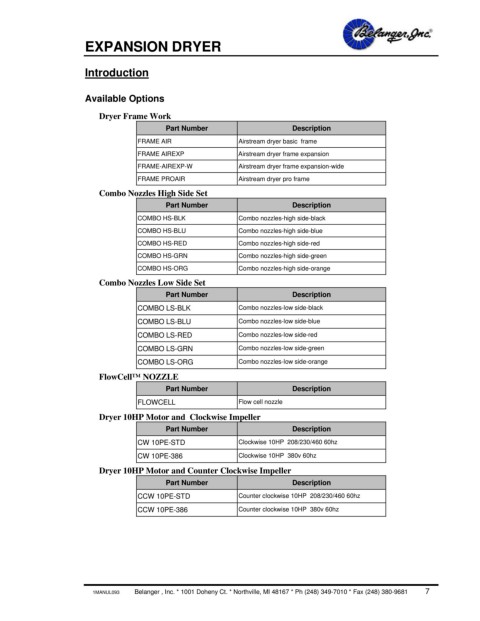

EXPANSION DRYER
Introduction
Available Options
Dryer Frame Work
Part Number Description
FRAME AIR Airstream dryer basic frame
FRAME AIREXP Airstream dryer frame expansion
FRAME-AIREXP-W Airstream dryer frame expansion-wide
FRAME PROAIR Airstream dryer pro frame
Combo Nozzles High Side Set
Part Number Description
COMBO HS-BLK Combo nozzles-high side-black
COMBO HS-BLU Combo nozzles-high side-blue
COMBO HS-RED Combo nozzles-high side-red
COMBO HS-GRN Combo nozzles-high side-green
COMBO HS-ORG Combo nozzles-high side-orange
Combo Nozzles Low Side Set
Part Number Description
COMBO LS-BLK Combo nozzles-low side-black
COMBO LS-BLU Combo nozzles-low side-blue
COMBO LS-RED Combo nozzles-low side-red
COMBO LS-GRN Combo nozzles-low side-green
COMBO LS-ORG Combo nozzles-low side-orange
FlowCell™ NOZZLE
Part Number Description
FLOWCELL Flow cell nozzle
Dryer 10HP Motor and Clockwise Impeller
Part Number Description
CW 10PE-STD Clockwise 10HP 208/230/460 60hz
CW 10PE-386 Clockwise 10HP 380v 60hz
Dryer 10HP Motor and Counter Clockwise Impeller
Part Number Description
CCW 10PE-STD Counter clockwise 10HP 208/230/460 60hz
CCW 10PE-386 Counter clockwise 10HP 380v 60hz
1MANUL093 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 7
