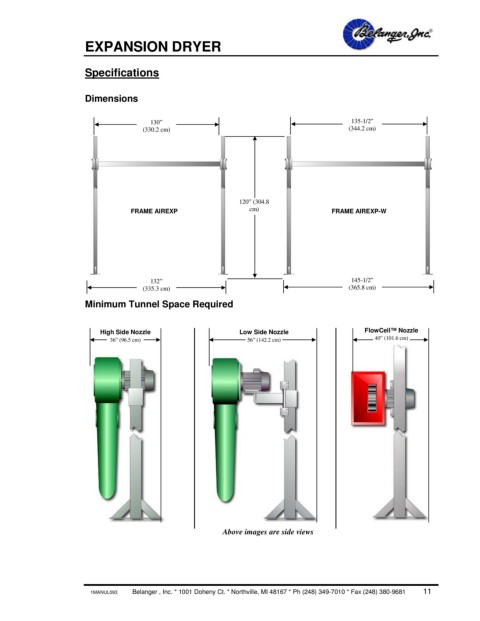

EXPANSION DRYER
Specifications
Dimensions
130” 135-1/2”
(330.2 cm) (344.2 cm)
120” (304.8
FRAME AIREXP cm) FRAME AIREXP-W
132” 145-1/2”
(335.3 cm) (365.8 cm)
Minimum Tunnel Space Required
High Side Nozzle Low Side Nozzle FlowCell™ Nozzle
36” (96.5 cm) 56” (142.2 cm) 40” (101.6 cm)
Above images are side views
