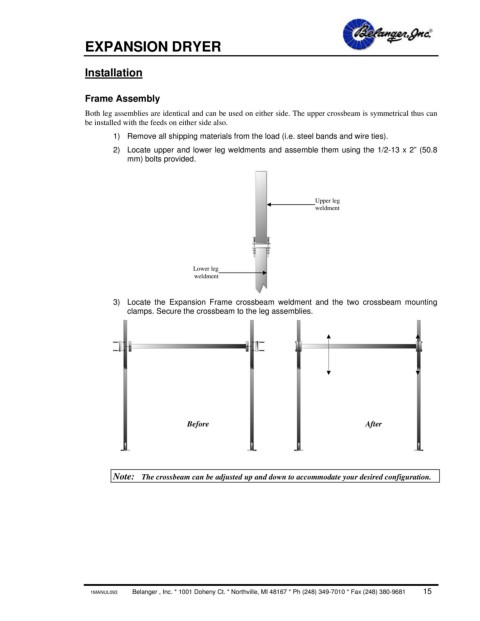

EXPANSION DRYER

Installation

Frame Assembly
Both leg assemblies are identical and can be used on either side. The upper crossbeam is symmetrical thus can
be installed with the feeds on either side also.
1) Remove all shipping materials from the load (i.e. steel bands and wire ties).
2) Locate upper and lower leg weldments and assemble them using the 1/2-13 x 2” (50.8
mm) bolts provided.

Upper leg
weldment

Lower leg
weldment

3) Locate the Expansion Frame crossbeam weldment and the two crossbeam mounting
clamps. Secure the crossbeam to the leg assemblies.

Before After

Note: The crossbeam can be adjusted up and down to accommodate your desired configuration.
