EXPANSION DRYER

Installation

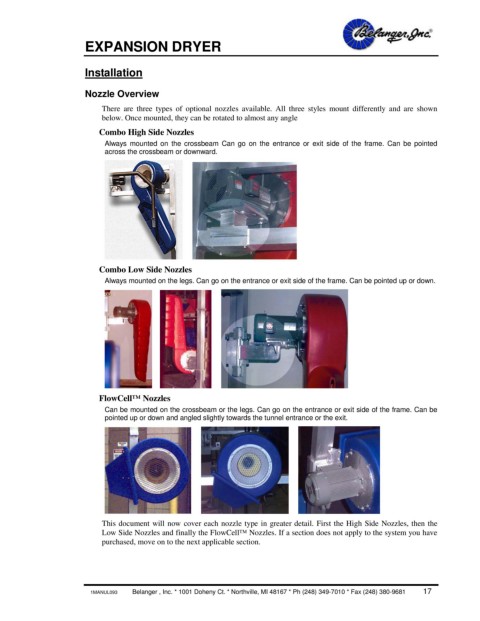

Nozzle Overview
There are three types of optional nozzles available. All three styles mount differently and are shown
below. Once mounted, they can be rotated to almost any angle
Combo High Side Nozzles
Always mounted on the crossbeam Can go on the entrance or exit side of the frame. Can be pointed
across the crossbeam or downward.

Combo Low Side Nozzles
Always mounted on the legs. Can go on the entrance or exit side of the frame. Can be pointed up or down.

FlowCell™ Nozzles
Can be mounted on the crossbeam or the legs. Can go on the entrance or exit side of the frame. Can be
pointed up or down and angled slightly towards the tunnel entrance or the exit.

This document will now cover each nozzle type in greater detail. First the High Side Nozzles, then the
Low Side Nozzles and finally the FlowCell™ Nozzles. If a section does not apply to the system you have
purchased, move on to the next applicable section.
