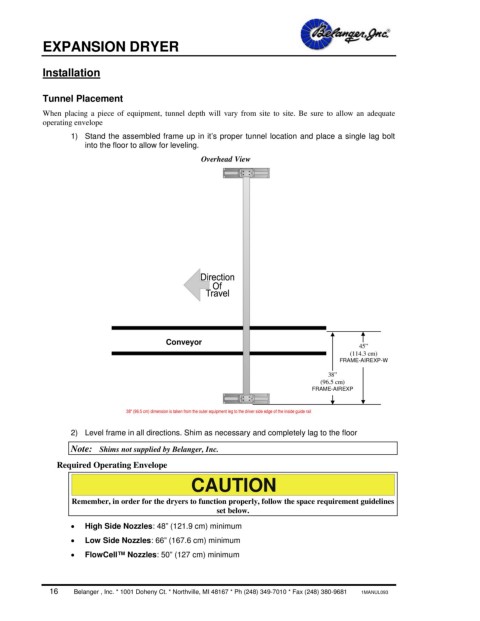

Page 18 - Expansion Dryer

EXPANSION DRYER

Installation

Tunnel Placement
When placing a piece of equipment, tunnel depth will vary from site to site. Be sure to allow an adequate
operating envelope
1) Stand the assembled frame up in it’s proper tunnel location and place a single lag bolt
into the floor to allow for leveling.

Overhead View

Conveyor
45”
(114.3 cm)
FRAME-AIREXP-W
38”
(96.5 cm)
FRAME-AIREXP

38" (96.5 cm) dimension is taken from the outer equipment leg to the driver side edge of the inside guide rail

2) Level frame in all directions. Shim as necessary and completely lag to the floor

Note: Shims not supplied by Belanger, Inc.
Required Operating Envelope

CAUTION

Remember, in order for the dryers to function properly, follow the space requirement guidelines
set below.
• High Side Nozzles: 48” (121.9 cm) minimum
• Low Side Nozzles: 66” (167.6 cm) minimum

• FlowCell™ Nozzles: 50” (127 cm) minimum
