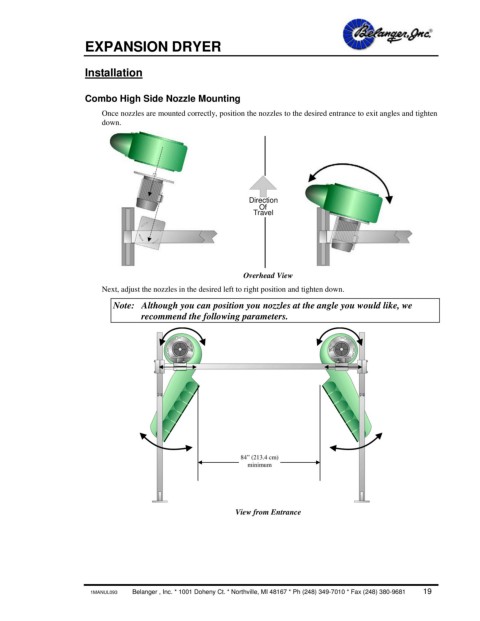

EXPANSION DRYER

Installation

Combo High Side Nozzle Mounting
Once nozzles are mounted correctly, position the nozzles to the desired entrance to exit angles and tighten
down.

Direction
Of
Travel

Overhead View
Next, adjust the nozzles in the desired left to right position and tighten down.

Note: Although you can position you nozzles at the angle you would like, we
recommend the following parameters.

84” (213.4 cm)
minimum

View from Entrance

1MANUL093 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 19
