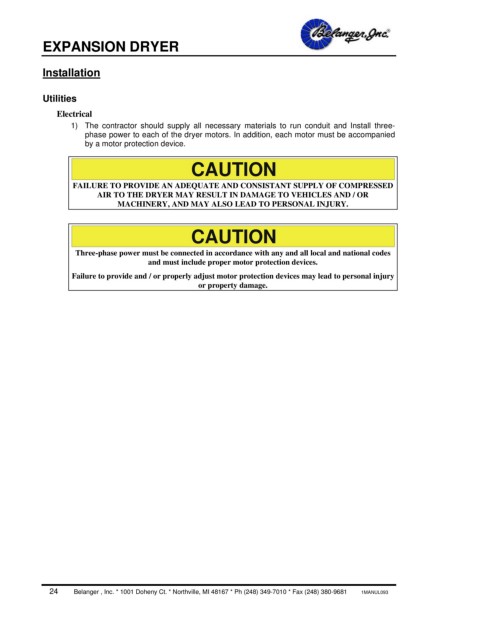

EXPANSION DRYER

Installation

Utilities
Electrical
1) The contractor should supply all necessary materials to run conduit and Install three-
phase power to each of the dryer motors. In addition, each motor must be accompanied
by a motor protection device.

CAUTION

FAILURE TO PROVIDE AN ADEQUATE AND CONSISTANT SUPPLY OF COMPRESSED
AIR TO THE DRYER MAY RESULT IN DAMAGE TO VEHICLES AND / OR
MACHINERY, AND MAY ALSO LEAD TO PERSONAL INJURY.

CAUTION

Three-phase power must be connected in accordance with any and all local and national codes
and must include proper motor protection devices.
Failure to provide and / or properly adjust motor protection devices may lead to personal injury
or property damage.
