EXPANSION DRYER

Installation

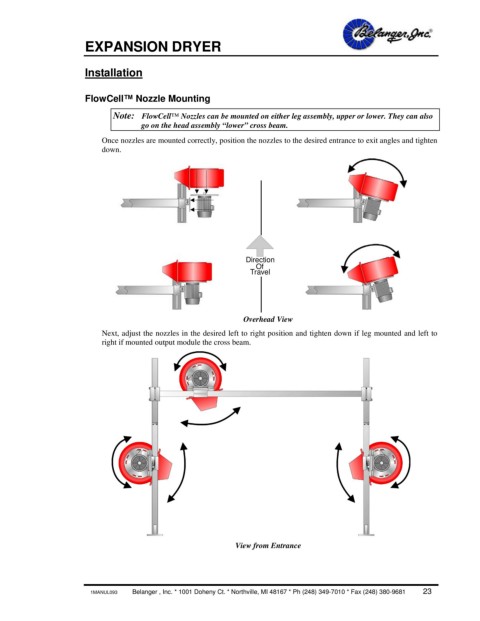

FlowCell™ Nozzle Mounting

Note: FlowCell™ Nozzles can be mounted on either leg assembly, upper or lower. They can also
go on the head assembly “lower” cross beam.

Once nozzles are mounted correctly, position the nozzles to the desired entrance to exit angles and tighten
down.

Direction
Of
Travel

Overhead View
Next, adjust the nozzles in the desired left to right position and tighten down if leg mounted and left to
right if mounted output module the cross beam.

View from Entrance
