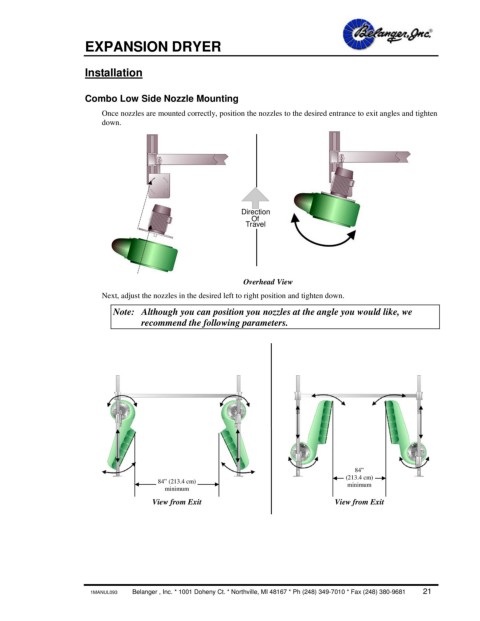

EXPANSION DRYER
Installation
Combo Low Side Nozzle Mounting
Once nozzles are mounted correctly, position the nozzles to the desired entrance to exit angles and tighten
down.
Direction
Of
Travel
Overhead View
Next, adjust the nozzles in the desired left to right position and tighten down.
Note: Although you can position you nozzles at the angle you would like, we
recommend the following parameters.
84”
84” (213.4 cm) (213.4 cm)
minimum
minimum
View from Exit View from Exit
