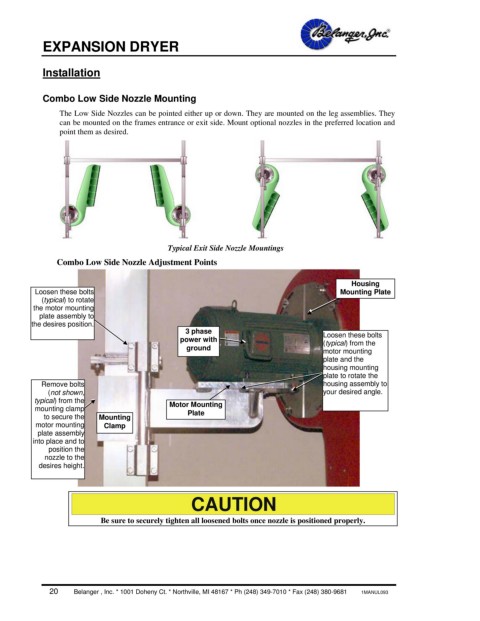

EXPANSION DRYER

Installation

Combo Low Side Nozzle Mounting
The Low Side Nozzles can be pointed either up or down. They are mounted on the leg assemblies. They
can be mounted on the frames entrance or exit side. Mount optional nozzles in the preferred location and
point them as desired.

Typical Exit Side Nozzle Mountings
Combo Low Side Nozzle Adjustment Points

Housing
Loosen these bolts Mounting Plate
(typical) to rotate
the motor mounting
plate assembly to
the desires position.
3 phase Loosen these bolts
power with (typical) from the
ground motor mounting
plate and the
housing mounting
plate to rotate the
Remove bolts housing assembly to
(not shown, your desired angle.
typical) from the Motor Mounting
mounting clamp
to secure the Mounting Plate
motor mounting Clamp
plate assembly
into place and to
position the
nozzle to the
desires height.

CAUTION

Be sure to securely tighten all loosened bolts once nozzle is positioned properly.
