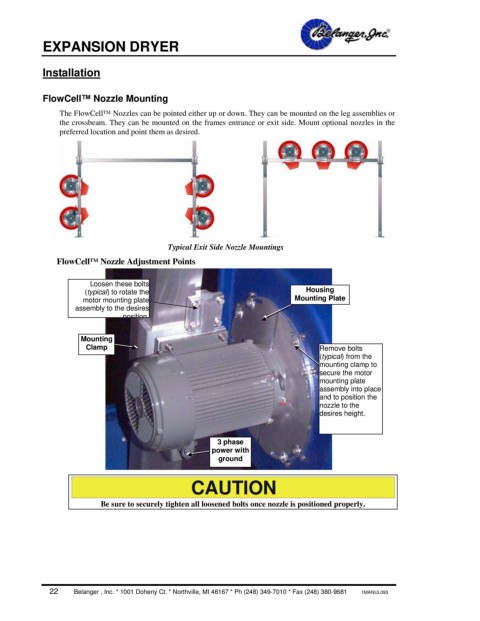

EXPANSION DRYER

Installation

FlowCell™ Nozzle Mounting
The FlowCell™ Nozzles can be pointed either up or down. They can be mounted on the leg assemblies or
the crossbeam. They can be mounted on the frames entrance or exit side. Mount optional nozzles in the
preferred location and point them as desired.

Typical Exit Side Nozzle Mountings
FlowCell™ Nozzle Adjustment Points

Loosen these bolts
(typical) to rotate the Housing
motor mounting plate Mounting Plate
assembly to the desires
position

Mounting
Clamp Remove bolts
(typical) from the
mounting clamp to
secure the motor
mounting plate
assembly into place
and to position the
nozzle to the
desires height.

3 phase
power with
ground

CAUTION

Be sure to securely tighten all loosened bolts once nozzle is positioned properly.
