EXPANSION DRYER

Installation

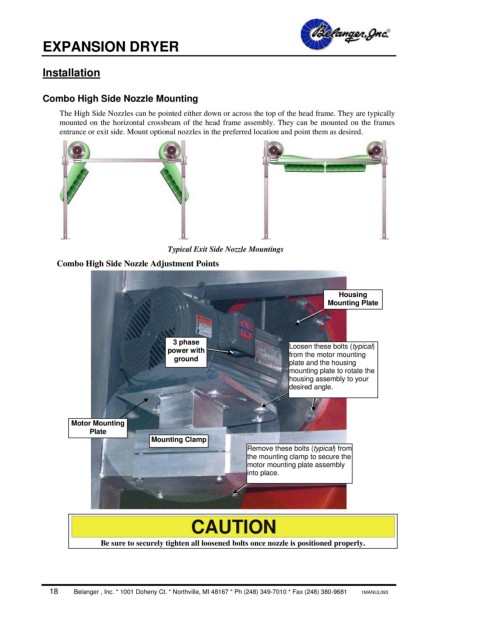

Combo High Side Nozzle Mounting
The High Side Nozzles can be pointed either down or across the top of the head frame. They are typically
mounted on the horizontal crossbeam of the head frame assembly. They can be mounted on the frames
entrance or exit side. Mount optional nozzles in the preferred location and point them as desired.

Typical Exit Side Nozzle Mountings
Combo High Side Nozzle Adjustment Points

Housing
Mounting Plate

3 phase
power with Loosen these bolts (typical)
from the motor mounting
ground
plate and the housing
mounting plate to rotate the
housing assembly to your
desired angle.

Motor Mounting
Plate
Mounting Clamp
Remove these bolts (typical) from
the mounting clamp to secure the
motor mounting plate assembly
into place.

CAUTION

Be sure to securely tighten all loosened bolts once nozzle is positioned properly.
