EXPANSION DRYER
Installation
Impeller Rotation Guide

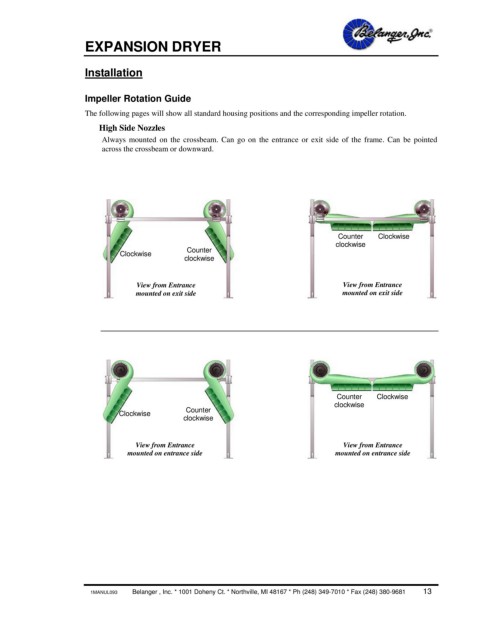

The following pages will show all standard housing positions and the corresponding impeller rotation.
High Side Nozzles
Always mounted on the crossbeam. Can go on the entrance or exit side of the frame. Can be pointed
across the crossbeam or downward.
Counter Clockwise
clockwise
Clockwise Counter
clockwise
View from Entrance View from Entrance
mounted on exit side mounted on exit side
Counter Clockwise
clockwise
Clockwise Counter
clockwise
View from Entrance View from Entrance
mounted on entrance side mounted on entrance side
