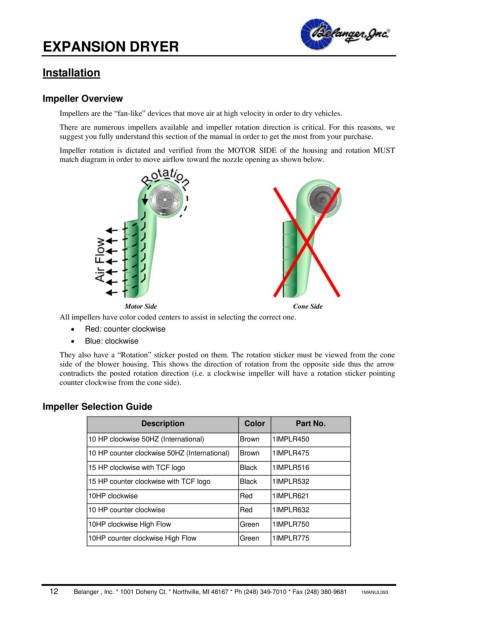

Page 14 - Expansion Dryer

EXPANSION DRYER

Installation

Impeller Overview
Impellers are the “fan-like” devices that move air at high velocity in order to dry vehicles.

There are numerous impellers available and impeller rotation direction is critical. For this reasons, we
suggest you fully understand this section of the manual in order to get the most from your purchase.
Impeller rotation is dictated and verified from the MOTOR SIDE of the housing and rotation MUST
match diagram in order to move airflow toward the nozzle opening as shown below.

Motor Side Cone Side
All impellers have color coded centers to assist in selecting the correct one.
• Red: counter clockwise
• Blue: clockwise
They also have a “Rotation” sticker posted on them. The rotation sticker must be viewed from the cone
side of the blower housing. This shows the direction of rotation from the opposite side thus the arrow
contradicts the posted rotation direction (i.e. a clockwise impeller will have a rotation sticker pointing
counter clockwise from the cone side).

Impeller Selection Guide

Description Color Part No.
10 HP clockwise 50HZ (International) Brown 1IMPLR450

10 HP counter clockwise 50HZ (International) Brown 1IMPLR475
15 HP clockwise with TCF logo Black 1IMPLR516
15 HP counter clockwise with TCF logo Black 1IMPLR532
10HP clockwise Red 1IMPLR621

10 HP counter clockwise Red 1IMPLR632
10HP clockwise High Flow Green 1IMPLR750
10HP counter clockwise High Flow Green 1IMPLR775

12 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL093
