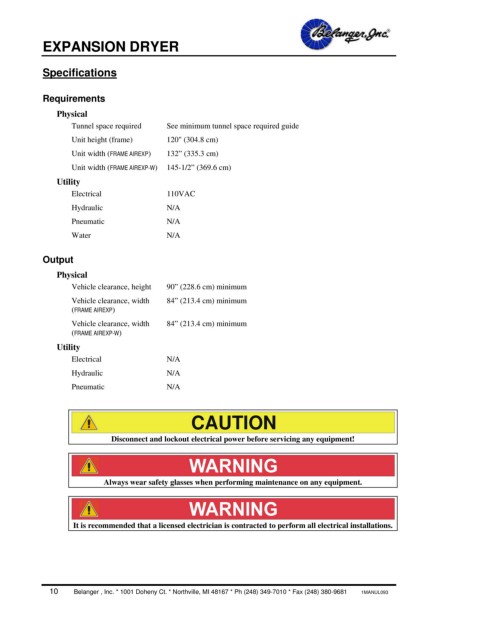

EXPANSION DRYER

Specifications

Requirements
Physical
Tunnel space required See minimum tunnel space required guide

Unit height (frame) 120" (304.8 cm)
Unit width (FRAME AIREXP) 132” (335.3 cm)
Unit width (FRAME AIREXP-W) 145-1/2” (369.6 cm)
Utility
Electrical 110VAC
Hydraulic N/A
Pneumatic N/A

Water N/A

Output

Physical
Vehicle clearance, height 90” (228.6 cm) minimum
Vehicle clearance, width 84” (213.4 cm) minimum
(FRAME AIREXP)
Vehicle clearance, width 84” (213.4 cm) minimum
(FRAME AIREXP-W)

Utility
Electrical N/A

Hydraulic N/A
Pneumatic N/A

CAUTION

Disconnect and lockout electrical power before servicing any equipment!

Always wear safety glasses when performing maintenance on any equipment.

It is recommended that a licensed electrician is contracted to perform all electrical installations.

10 Belanger , Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL093
