EXPANSION DRYER

Installation

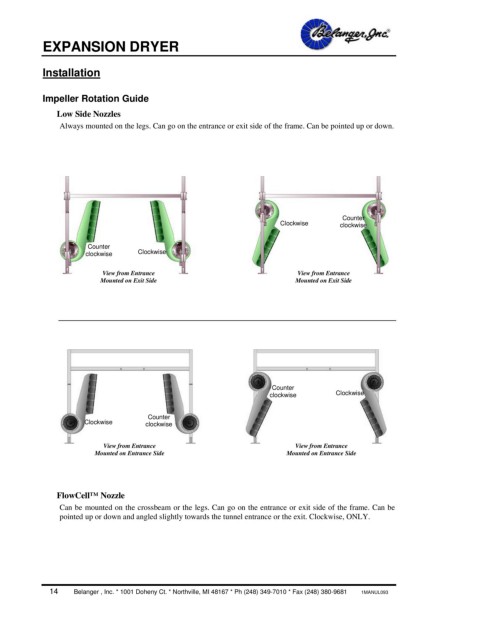

Impeller Rotation Guide
Low Side Nozzles
Always mounted on the legs. Can go on the entrance or exit side of the frame. Can be pointed up or down.

Counter
Clockwise clockwise

Counter
clockwise Clockwise

View from Entrance View from Entrance
Mounted on Exit Side Mounted on Exit Side

Counter
clockwise Clockwise

Counter
Clockwise clockwise

View from Entrance View from Entrance
Mounted on Entrance Side Mounted on Entrance Side

FlowCell™ Nozzle
Can be mounted on the crossbeam or the legs. Can go on the entrance or exit side of the frame. Can be
pointed up or down and angled slightly towards the tunnel entrance or the exit. Clockwise, ONLY.
