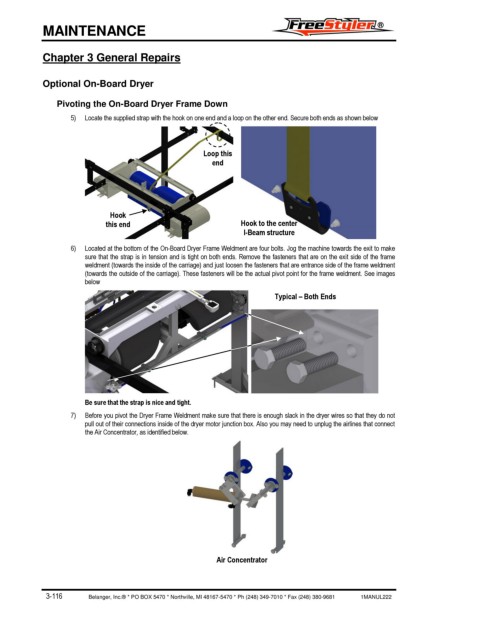

MAINTENANCE

Chapter 3 General Repairs

Optional On-Board Dryer

Pivoting the On-Board Dryer Frame Down
5) Locate the supplied strap with the hook on one end and a loop on the other end. Secure both ends as shown below

Loop this
end

Hook
this end Hook to the center
I-Beam structure

6) Located at the bottom of the On-Board Dryer Frame Weldment are four bolts. Jog the machine towards the exit to make
sure that the strap is in tension and is tight on both ends. Remove the fasteners that are on the exit side of the frame
weldment (towards the inside of the carriage) and just loosen the fasteners that are entrance side of the frame weldment
(towards the outside of the carriage). These fasteners will be the actual pivot point for the frame weldment. See images
below
Typical – Both Ends

Be sure that the strap is nice and tight.
7) Before you pivot the Dryer Frame Weldment make sure that there is enough slack in the dryer wires so that they do not
pull out of their connections inside of the dryer motor junction box. Also you may need to unplug the airlines that connect
the Air Concentrator, as identified below.

Air Concentrator
