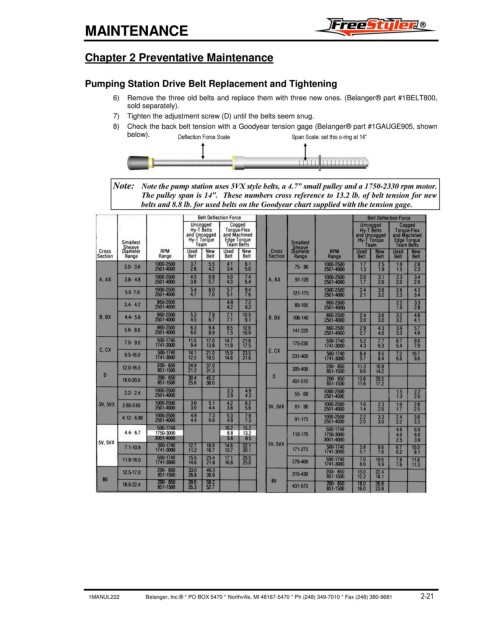

                       MAINTENANCE


                       Chapter 2 Preventative Maintenance


                       Pumping Station Drive Belt Replacement and Tightening

                              6)  Remove the three old belts and replace them with three new ones. (Belanger® part #1BELT800,
                                 sold separately).
                              7)  Tighten the adjustment screw (D) until the belts seem snug.
                              8)  Check the back belt tension with a Goodyear tension gage (Belanger® part #1GAUGE905, shown
                                 below).      Deflection Force Scale       Span Scale: set this o-ring at 14”




                              Note:  Note the pump station uses 5VX style belts, a 4.7” small pulley and a 1750-2330 rpm motor.
                                     The pulley span is 14”.  These numbers cross reference to 13.2 lb. of belt tension for new
                                     belts and 8.8 lb. for used belts on the Goodyear chart supplied with the tension gage.
