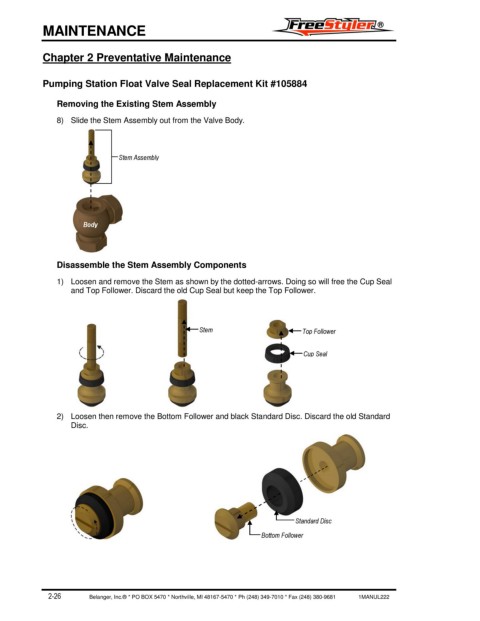

MAINTENANCE

Chapter 2 Preventative Maintenance

Pumping Station Float Valve Seal Replacement Kit #105884

Removing the Existing Stem Assembly
8) Slide the Stem Assembly out from the Valve Body.

Stem Assembly

Body

Disassemble the Stem Assembly Components
1) Loosen and remove the Stem as shown by the dotted-arrows. Doing so will free the Cup Seal
and Top Follower. Discard the old Cup Seal but keep the Top Follower.

Stem Top Follower

Cup Seal

2) Loosen then remove the Bottom Follower and black Standard Disc. Discard the old Standard
Disc.

Standard Disc

Bottom Follower
