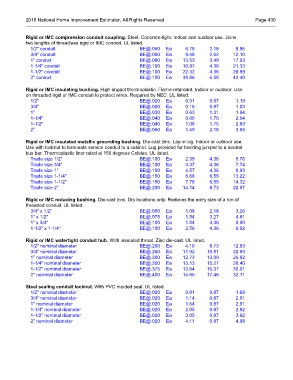

Page 542 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 430

Rigid or IMC compression conduit coupling. Steel. Concrete-tight. Indoor and outdoor use. Joins
two lengths of threadless rigid or IMC conduit. UL listed.
1/2" conduit BE@.050 Ea 6.78 2.18 8.96
3/4" conduit BE@.060 Ea 9.48 2.62 12.10
1" conduit BE@.080 Ea 13.53 3.49 17.03
1-1/4" conduit BE@.100 Ea 16.97 4.36 21.33
1-1/2" conduit BE@.100 Ea 22.32 4.36 26.69
2" conduit BE@.150 Ea 35.86 6.55 42.40

Rigid or IMC insulating bushing. High-impact thermoplastic. Flame-retardant. Indoor or outdoor. Use
on threaded rigid or IMC conduit to protect wires. Required by NEC. UL listed.
1/2" BE@.020 Ea 0.31 0.87 1.19
3/4" BE@.020 Ea 0.16 0.87 1.03
1" BE@.030 Ea 0.63 1.31 1.94
1-1/4" BE@.040 Ea 0.80 1.75 2.54
1-1/2" BE@.040 Ea 1.08 1.75 2.83
2" BE@.050 Ea 1.49 2.18 3.68

Rigid or IMC insulated metallic grounding bushing. Die-cast zinc. Lay-in lug. Indoor or outdoor use.
Use with locknut to terminate service conduit to a cabinet. Lug provided for bonding jumper to a neutral
bus bar. Thermoplastic liner rated at 150 degrees Celsius. UL listed.
Trade size 1/2" BE@.100 Ea 2.39 4.36 6.76
Trade size 3/4" BE@.100 Ea 3.37 4.36 7.74
Trade size 1" BE@.100 Ea 4.57 4.36 8.93
Trade size 1-1/4" BE@.150 Ea 6.68 6.55 13.22
Trade size 1-1/2" BE@.150 Ea 7.78 6.55 14.32
Trade size 2" BE@.200 Ea 14.14 8.73 22.87

Rigid or IMC reducing bushing. Die-cast zinc. Dry locations only. Reduces the entry size of a run of
threaded conduit. UL listed.
3/4" x 1/2" BE@.050 Ea 1.08 2.18 3.26
1" x 1/2" BE@.075 Ea 1.54 3.27 4.81
1" x 3/4" BE@.100 Ea 1.54 4.36 5.90
1-1/2" x 1-1/4" BE@.100 Ea 2.56 4.36 6.92

Rigid or IMC watertight conduit hub. With insulated throat. Zinc die-cast. UL listed.
1/2" nominal diameter BE@.200 Ea 4.10 8.73 12.83
3/4" nominal diameter BE@.250 Ea 11.92 10.91 22.83
1" nominal diameter BE@.300 Ea 12.73 13.09 25.82
1-1/4" nominal diameter BE@.350 Ea 13.13 15.27 28.40
1-1/2" nominal diameter BE@.375 Ea 13.64 16.37 30.01
2" nominal diameter BE@.400 Ea 14.65 17.46 32.11

Steel sealing conduit locknut. With PVC molded seal. UL listed.
1/2" nominal diameter BE@.020 Ea 0.81 0.87 1.68
3/4" nominal diameter BE@.020 Ea 1.14 0.87 2.01
1" nominal diameter BE@.020 Ea 1.64 0.87 2.51
1-1/4" nominal diameter BE@.020 Ea 2.05 0.87 2.92
1-1/2" nominal diameter BE@.020 Ea 3.05 0.87 3.92
2" nominal diameter BE@.020 Ea 4.11 0.87 4.98
