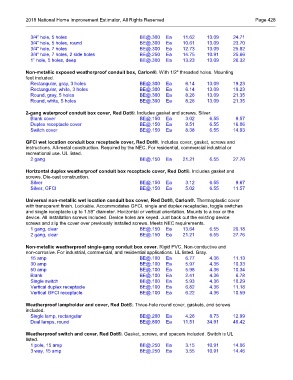

Page 539 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 428

3/4" hole, 5 holes BE@.300 Ea 11.62 13.09 24.71
3/4" hole, 5 holes, round BE@.300 Ea 10.61 13.09 23.70
3/4" hole, 7 holes BE@.300 Ea 12.73 13.09 25.82
3/4" hole, 7 holes, 2 side holes BE@.250 Ea 14.75 10.91 25.66
1" hole, 5 holes, deep BE@.300 Ea 13.23 13.09 26.32

Non-metallic exposed weatherproof conduit box, Carlon®. With 1/2" threaded holes. Mounting
feet included.
Rectangular, gray, 3 holes BE@.300 Ea 6.14 13.09 19.23
Rectangular, white, 3 holes BE@.300 Ea 6.14 13.09 19.23
Round, gray, 5 holes BE@.300 Ea 8.26 13.09 21.35
Round, white, 5 holes BE@.300 Ea 8.26 13.09 21.35

2-gang waterproof conduit box cover, Red Dot®. Includes gasket and screws. Silver.
Blank cover BE@.150 Ea 3.02 6.55 9.57
Duplex receptacle cover BE@.150 Ea 9.51 6.55 16.06
Switch cover BE@.150 Ea 8.38 6.55 14.93

GFCI wet location conduit box receptacle cover, Red Dot®. Includes cover, gasket, screws and
instructions. All-metal construction. Required by the NEC. For residential, commercial industrial or
recreational use. UL listed.
2 gang BE@.150 Ea 21.21 6.55 27.76

Horizontal duplex weatherproof conduit box receptacle cover, Red Dot®. Includes gasket and
screws. Die-cast construction.
Silver BE@.150 Ea 3.12 6.55 9.67
Silver, GFCI BE@.150 Ea 5.02 6.55 11.57

Universal non-metallic wet location conduit box cover, Red Dot®, Carlon®. Thermoplastic cover
with transparent finish. Lockable. Accommodates GFCI, single and duplex receptacles, toggle switches
and single receptacle up to 1.59" diameter. Horizontal or vertical orientation. Mounts to a box or the
device. All installation screws included. Device holes are keyed. Just back out the existing device
screws and slip the cover over previously installed screws. Meets NEC requirements.
1 gang, clear BE@.150 Ea 13.64 6.55 20.18
2 gang, clear BE@.150 Ea 21.21 6.55 27.76

Non-metallic weatherproof single-gang conduit box cover. Rigid PVC. Non-conductive and
non-corrosive. For industrial, commercial, and residential applications. UL listed. Gray.
15 amp BE@.100 Ea 6.77 4.36 11.13
30 amp BE@.100 Ea 5.97 4.36 10.33
50 amp BE@.100 Ea 5.98 4.36 10.34
Blank BE@.100 Ea 2.41 4.36 6.78
Single switch BE@.100 Ea 5.93 4.36 10.29
Vertical duplex receptacle BE@.100 Ea 6.82 4.36 11.18
Vertical GFCI receptacle BE@.100 Ea 6.22 4.36 10.59

Weatherproof lampholder and cover, Red Dot®. Three-hole round cover, gaskets, and screws
included.
Single lamp, rectangular BE@.200 Ea 4.26 8.73 12.99
Dual lamps, round BE@.800 Ea 11.51 34.91 46.42

Weatherproof switch and cover, Red Dot®. Gasket, screws, and spacers included. Switch is UL
listed.
1 pole, 15 amp BE@.250 Ea 3.15 10.91 14.06
3 way, 15 amp BE@.250 Ea 3.55 10.91 14.46
