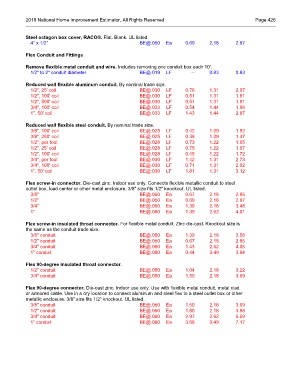

Page 536 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 426

Steel octagon box cover, RACO®. Flat. Blank. UL listed.
4" x 1/2" BE@.050 Ea 0.69 2.18 2.87

Flex Conduit and Fittings

Remove flexible metal conduit and wire. Includes removing one conduit box each 10'.
1/2" to 2" conduit diameter BE@.019 LF -- 0.83 0.83

Reduced wall flexible aluminum conduit. By nominal trade size.
1/2", 25' coil BE@.030 LF 0.76 1.31 2.07
1/2", 100' coil BE@.030 LF 0.51 1.31 1.81
1/2", 500' coil BE@.030 LF 0.51 1.31 1.81
3/4", 100' coil BE@.033 LF 0.54 1.44 1.98
1", 50' coil BE@.033 LF 1.43 1.44 2.87

Reduced wall flexible steel conduit. By nominal trade size.
3/8", 100' coil BE@.025 LF 0.42 1.09 1.52
3/8", 250' coil BE@.025 LF 0.38 1.09 1.47
1/2", per foot BE@.028 LF 0.73 1.22 1.95
1/2", 25' coil BE@.028 LF 0.75 1.22 1.97
1/2", 100' coil BE@.028 LF 0.49 1.22 1.72
3/4", per foot BE@.030 LF 1.42 1.31 2.73
3/4", 100' coil BE@.030 LF 0.71 1.31 2.02
1", 50' coil BE@.030 LF 1.81 1.31 3.12

Flex screw-in connector. Die-cast zinc. Indoor use only. Connects flexible metallic conduit to steel
outlet box, load center or other metal enclosure. 3/8" size fits 1/2" knockout. UL listed.
3/8" BE@.050 Ea 0.67 2.18 2.85
1/2" BE@.050 Ea 0.69 2.18 2.87
3/4" BE@.050 Ea 1.30 2.18 3.48
1" BE@.060 Ea 1.39 2.62 4.01

Flex screw-in insulated throat connector. For flexible metal conduit. Zinc die-cast. Knockout size is
the same as the conduit trade size.
3/8" conduit BE@.050 Ea 1.39 2.18 3.58
1/2" conduit BE@.050 Ea 0.67 2.18 2.85
3/4" conduit BE@.060 Ea 1.43 2.62 4.05
1" conduit BE@.080 Ea 0.44 3.49 3.94

Flex 90-degree insulated throat connector.
1/2" conduit BE@.050 Ea 1.04 2.18 3.22
3/4" conduit BE@.050 Ea 1.50 2.18 3.69

Flex 90-degree connector. Die-cast zinc. Indoor use only. Use with flexible metal conduit, metal clad
or armored cable. Use in a dry location to connect aluminum and steel flex to a steel outlet box or other
metallic enclosure. 3/8" size fits 1/2" knockout. UL listed.
3/8" conduit BE@.050 Ea 1.50 2.18 3.69
1/2" conduit BE@.050 Ea 1.80 2.18 3.98
3/4" conduit BE@.060 Ea 2.97 2.62 5.59
1" conduit BE@.080 Ea 3.68 3.49 7.17
