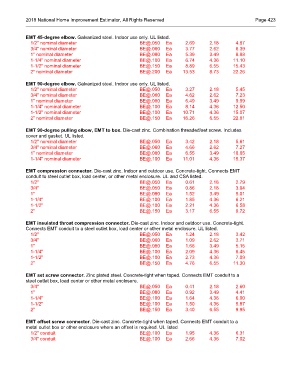

Page 532 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 423

EMT 45-degree elbow. Galvanized steel. Indoor use only. UL listed.
1/2" nominal diameter BE@.050 Ea 2.69 2.18 4.87
3/4" nominal diameter BE@.060 Ea 3.77 2.62 6.39
1" nominal diameter BE@.080 Ea 5.39 3.49 8.88
1-1/4" nominal diameter BE@.100 Ea 6.74 4.36 11.10
1-1/2" nominal diameter BE@.150 Ea 8.89 6.55 15.43
2" nominal diameter BE@.200 Ea 13.53 8.73 22.26

EMT 90-degree elbow. Galvanized steel. Indoor use only. UL listed.
1/2" nominal diameter BE@.050 Ea 3.27 2.18 5.45
3/4" nominal diameter BE@.060 Ea 4.62 2.62 7.23
1" nominal diameter BE@.080 Ea 6.49 3.49 9.99
1-1/4" nominal diameter BE@.100 Ea 8.14 4.36 12.50
1-1/2" nominal diameter BE@.100 Ea 10.71 4.36 15.07
2" nominal diameter BE@.150 Ea 16.26 6.55 22.81

EMT 90-degree pulling elbow, EMT to box. Die-cast zinc. Combination threaded/set screw. Includes
cover and gasket. UL listed.
1/2" nominal diameter BE@.050 Ea 3.42 2.18 5.61
3/4" nominal diameter BE@.060 Ea 4.66 2.62 7.27
1" nominal diameter BE@.080 Ea 6.55 3.49 10.05
1-1/4" nominal diameter BE@.100 Ea 11.01 4.36 15.37

EMT compression connector. Die-cast zinc. Indoor and outdoor use. Concrete-tight. Connects EMT
conduit to steel outlet box, load center, or other metal enclosure. UL and CSA listed.
1/2" BE@.050 Ea 0.61 2.18 2.79
3/4" BE@.050 Ea 0.86 2.18 3.04
1" BE@.080 Ea 1.52 3.49 5.01
1-1/4" BE@.100 Ea 1.85 4.36 6.21
1-1/2" BE@.100 Ea 2.21 4.36 6.58
2" BE@.150 Ea 3.17 6.55 9.72

EMT insulated throat compression connector. Die-cast zinc. Indoor and outdoor use. Concrete-tight.
Connects EMT conduit to a steel outlet box, load center or other metal enclosure. UL listed.
1/2" BE@.050 Ea 1.24 2.18 3.42
3/4" BE@.060 Ea 1.09 2.62 3.71
1" BE@.080 Ea 1.66 3.49 5.15
1-1/4" BE@.100 Ea 2.09 4.36 6.45
1-1/2" BE@.100 Ea 2.73 4.36 7.09
2" BE@.150 Ea 4.76 6.55 11.30

EMT set screw connector. Zinc plated steel. Concrete-tight when taped. Connects EMT conduit to a
steel outlet box, load center or other metal enclosure.
3/4" BE@.050 Ea 0.41 2.18 2.60
1" BE@.080 Ea 0.92 3.49 4.41
1-1/4" BE@.100 Ea 1.64 4.36 6.00
1-1/2" BE@.100 Ea 1.50 4.36 5.87
2" BE@.150 Ea 3.40 6.55 9.95

EMT offset screw connector. Die-cast zinc. Concrete-tight when taped. Connects EMT conduit to a
metal outlet box or other enclosure where an offset is required. UL listed.
1/2" conduit BE@.100 Ea 1.95 4.36 6.31
3/4" conduit BE@.100 Ea 2.66 4.36 7.02
