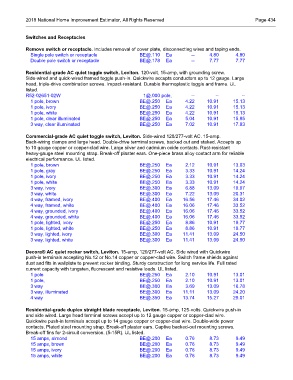

Page 548 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 434

Switches and Receptacles

Remove switch or receptacle. Includes removal of cover plate, disconnecting wires and taping ends.
Single pole switch or receptacle BE@.110 Ea -- 4.80 4.80
Double pole switch or receptacle BE@.178 Ea -- 7.77 7.77

Residential-grade AC quiet toggle switch, Leviton. 120-volt, 15-amp, with grounding screw.
Side-wired and quick-wired framed toggle push-in. Quickwire accepts conductors up to 12 gauge. Large
head, triple-drive combination screws. Impact-resistant. Durable thermoplastic toggle and frame. UL
listed.
R52-02651-02W 1@.000 pole, -- -- --
1 pole, brown BE@.250 Ea 4.22 10.91 15.13
1 pole, ivory BE@.250 Ea 4.22 10.91 15.13
1 pole, white BE@.250 Ea 4.22 10.91 15.13
1 pole, clear illuminated BE@.250 Ea 5.04 10.91 15.95
3 way, clear illuminated BE@.250 Ea 7.02 10.91 17.93

Commercial-grade AC quiet toggle switch, Leviton. Side-wired 120/277-volt AC. 15-amp.
Back-wiring clamps and large head. Double-drive terminal screws, backed out and staked. Accepts up
to 10 gauge copper or copper-clad wire. Large silver and cadmium oxide contacts. Rust-resistant
heavy-gauge steel mounting strap. Break-off plaster ears. One-piece brass alloy contact arm for reliable
electrical performance. UL listed.
1 pole, brown BE@.250 Ea 2.12 10.91 13.03
1 pole, gray BE@.250 Ea 3.33 10.91 14.24
1 pole, ivory BE@.250 Ea 3.33 10.91 14.24
1 pole, white BE@.250 Ea 3.33 10.91 14.24
3 way, ivory BE@.300 Ea 6.88 13.09 19.97
3 way, white BE@.300 Ea 7.22 13.09 20.31
4 way, framed, ivory BE@.400 Ea 16.56 17.46 34.02
4 way, framed, white BE@.400 Ea 16.06 17.46 33.52
4 way, grounded, ivory BE@.400 Ea 16.06 17.46 33.52
4 way, grounded, white BE@.400 Ea 16.06 17.46 33.52
1 pole, lighted, ivory BE@.250 Ea 8.86 10.91 19.77
1 pole, lighted, white BE@.250 Ea 8.86 10.91 19.77
3 way, lighted, ivory BE@.300 Ea 11.41 13.09 24.50
3 way, lighted, white BE@.300 Ea 11.41 13.09 24.50

Decora® AC quiet rocker switch, Leviton. 15-amp, 120/277-volt AC. Side wired with Quickwire
push-in terminals accepting No.12 or No.14 copper or copper-clad wire. Switch frame shields against
dust and fits in wallplate to prevent rocker binding. Sturdy construction for long service life. Full rated
current capacity with tungsten, fluorescent and resistive loads. UL listed.
1 pole BE@.250 Ea 2.10 10.91 13.01
1 pole, BE@.250 Ea 2.10 10.91 13.01
3 way BE@.300 Ea 3.69 13.09 16.78
3 way, illuminated BE@.300 Ea 11.11 13.09 24.20
4 way BE@.350 Ea 13.74 15.27 29.01

Residential-grade duplex straight blade receptacle, Leviton. 15-amp, 125-volts. Quickwire push-in
and side wired. Large head terminal screws accept up to 12 gauge copper or copper-clad wire.
Quickwire push-in terminals accept up to 14 gauge copper or copper-clad wire. Double-wide power
contacts. Plated steel mounting strap. Break-off plaster ears. Captive backed-out mounting screws.
Break-off fins for 2-circuit conversion. (5-15R). UL listed.
15 amps, almond BE@.200 Ea 0.76 8.73 9.49
15 amps, brown BE@.200 Ea 0.76 8.73 9.49
15 amps, ivory BE@.200 Ea 0.76 8.73 9.49
15 amps, white BE@.200 Ea 0.76 8.73 9.49
