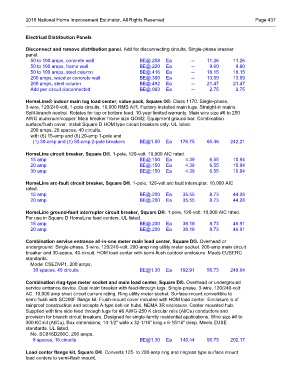

2018 National Home Improvement Estimator, All Rights Reserved Page 437

Electrical Distribution Panels

Disconnect and remove distribution panel. Add for disconnecting circuits. Single-phase breaker
panel.
50 to 100 amps, concrete wall BE@.258 Ea -- 11.26 11.26
50 to 100 amps, frame wall BE@.220 Ea -- 9.60 9.60
50 to 100 amps, steel column BE@.416 Ea -- 18.15 18.15
200 amps, wood or concrete wall BE@.300 Ea -- 13.09 13.09
200 amps, steel column BE@.492 Ea -- 21.47 21.47
Add per circuit disconnected BE@.063 Ea -- 2.75 2.75

HomeLine® indoor main lug load center, value pack, Square D®. Class 1170. Single-phase,
3-wire, 120/240-volt, 1-pole circuits. 10,000 RMS AIR. Factory-installed main lugs. Straight-in mains.
Split-branch neutral. Rotates for top or bottom feed. 10-year limited warranty. Main wire size #6 to 250
AWG aluminum/copper. Main breaker frame size QOM2. Equipment ground bar. Combination
surface/flush cover. Install Square D HOM type circuit breakers only. UL listed.
200 amps, 20 spaces, 40 circuits,
with (6) 15-amp and (6) 20-amp 1-pole and
(1) 30-amp and (1) 50-amp 2-pole breakers BE@1.50 Ea 176.75 65.46 242.21

HomeLine circuit breaker, Square D®. 1-pole, 120-volt. 10,000 AIC rated.
15 amp BE@.150 Ea 4.39 6.55 10.94
20 amp BE@.150 Ea 4.39 6.55 10.94
30 amp BE@.150 Ea 4.39 6.55 10.94

HomeLine arc-fault circuit breaker, Square D®. 1-pole, 120-volt arc fault interrupter. 10,000 AIC
rated.
15 amp BE@.200 Ea 35.55 8.73 44.28
20 amp BE@.200 Ea 35.55 8.73 44.28

HomeLine ground-fault interrupter circuit breaker, Square D®. 1-pole, 120-volt. 10,000 AIC rated.
For use in Square D HomeLine load centers. UL listed.
15 amp BE@.200 Ea 38.18 8.73 46.91
20 amp BE@.200 Ea 38.18 8.73 46.91

Combination service entrance all-in-one meter main load center, Square D®. Overhead or
underground. Single-phase, 3-wire, 120/240-volt, 200-amp ring utility meter socket. 200-amp main circuit
breaker and 30-space, 40-circuit, HOM load center with semi-flush outdoor enclosure. Meets EUSERC
standards.
Model CSEDVP1, 200 amps,
30 spaces, 40 circuits BE@1.30 Ea 192.91 56.73 249.64

Combination ring-type meter socket and main load center, Square D®. Overhead or underground
service entrance device. Dual main breaker with feed-through lugs. Single-phase, 3-wire, 120/240-volt
AC. 10,000 amp short circuit current rating. Ring utility meter socket. Surface-mount convertible to
semi-flush with SC200F flange kit. Flush-mount cover included with HOM load center. Enclosure is of
rainproof construction and accepts A-type bolt-on hubs. NEMA 3R enclosure. Center mounted hub.
Supplied with line side feed through lugs for #6 AWG-250 K circular mils (Al/Cu) conductors and
provision for branch circuit breakers. Designed for single-family residential applications. Wire size #6 to
300 KCmil (Al/Cu). Box dimensions, 14-1/2" wide x 32-1/16" long x 6-15/16" deep. Meets EUSE
standards. UL listed.
No. SC816D200C, 200 amps,
8 spaces, 16 circuits BE@1.30 Ea 145.44 56.73 202.17

Load center flange kit, Square D®. Converts 125- to 200-amp ring and ringless type surface mount
load centers to semi-flush mount.
