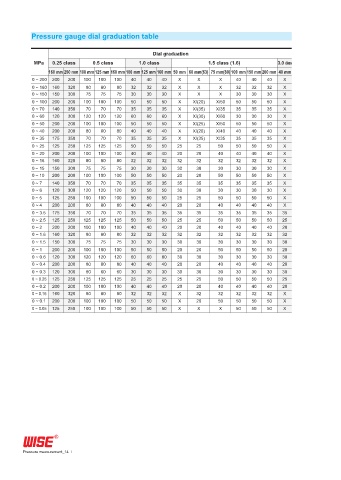

Pressure gauge dial graduation table

Dial graduation
MPa 0.25 class 0.5 class 1.0 class 1.5 class (1.6) 3.0 class
160 mm 250 mm 100 mm 125 mm 160 mm 100 mm 125 mm 160 mm 50 mm 60 mm(63) 75 mm(80) 100 mm 150 mm 200 mm 40 mm
0 ~ 200 200 200 100 100 100 40 40 40 X X X 40 40 40 X
0 ~ 160 160 320 80 80 80 32 32 32 X X X 32 32 32 X
0 ~ 150 150 300 75 75 75 30 30 30 X X X 30 30 30 X
0 ~ 100 200 200 100 100 100 50 50 50 X X/(20) X/50 50 50 50 X
0 ~ 70 140 350 70 70 70 35 35 35 X X/(35) X/35 35 35 35 X
0 ~ 60 120 300 120 120 120 60 60 60 X X/(30) X/60 30 30 30 X
0 ~ 50 200 200 100 100 100 50 50 50 X X/(25) X/50 50 50 50 X
0 ~ 40 200 200 80 80 80 40 40 40 X X/(20) X/40 40 40 40 X
0 ~ 35 175 350 70 70 70 35 35 35 X X/(35) X/35 35 35 35 X
0 ~ 25 125 250 125 125 125 50 50 50 25 25 50 50 50 50 X
0 ~ 20 200 200 100 100 100 40 40 40 20 20 40 40 40 40 X
0 ~ 16 160 320 80 80 80 32 32 32 32 32 32 32 32 32 X
0 ~ 15 150 300 75 75 75 30 30 30 30 30 30 30 30 30 X
0 ~ 10 200 200 100 100 100 50 50 50 20 20 50 50 50 50 X
0 ~ 7 140 350 70 70 70 35 35 35 35 35 35 35 35 35 X
0 ~ 6 120 300 120 120 120 50 50 50 30 30 30 30 30 30 X
0 ~ 5 125 250 100 100 100 50 50 50 25 25 50 50 50 50 X
0 ~ 4 200 200 80 80 80 40 40 40 20 20 40 40 40 40 X
0 ~ 3.5 175 350 70 70 70 35 35 35 35 35 35 35 35 35 35
0 ~ 2.5 125 250 125 125 125 50 50 50 25 25 50 50 50 50 25
0 ~ 2 200 200 100 100 100 40 40 40 20 20 40 40 40 40 20
0 ~ 1.6 160 320 80 80 80 32 32 32 32 32 32 32 32 32 32
0 ~ 1.5 150 300 75 75 75 30 30 30 30 30 30 30 30 30 30
0 ~ 1 200 200 100 100 100 50 50 50 20 20 50 50 50 50 20
0 ~ 0.6 120 300 120 120 120 60 60 60 30 30 30 30 30 30 30
0 ~ 0.4 200 200 80 80 80 40 40 40 20 20 40 40 40 40 20
0 ~ 0.3 120 300 60 60 60 30 30 30 30 30 30 30 30 30 30
0 ~ 0.25 125 250 125 125 125 25 25 25 25 25 50 50 50 50 25
0 ~ 0.2 200 200 100 100 100 40 40 40 20 20 40 40 40 40 20
0 ~ 0.16 160 320 80 80 80 32 32 32 X 32 32 32 32 32 X
0 ~ 0.1 200 200 100 100 100 50 50 50 X 20 50 50 50 50 X
0 ~ 0.05 125 250 100 100 100 50 50 50 X X X 50 50 50 X

Pressure measurement_14
