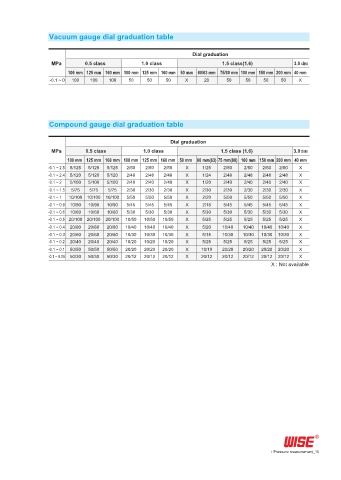

Vacuum gauge dial graduation table

Dial graduation
MPa 0.5 class 1.0 class 1.5 class(1.6) 3.0 class
100 mm 125 mm 160 mm 100 mm 125 mm 160 mm 50 mm 60/63 mm 75/80 mm 100 mm 150 mm 200 mm 40 mm
-0.1 ~ 0 100 100 100 50 50 50 X 20 50 50 50 50 X

Compound gauge dial graduation table

Dial graduation
MPa 0.5 class 1.0 class 1.5 class (1.6) 3.0 class
100 mm 125 mm 160 mm 100 mm 125 mm 160 mm 50 mm 60 mm(63) 75 mm(80) 100 mm 150 mm 200 mm 40 mm
-0.1 ~ 2.5 5/125 5/125 5/125 2/50 2/50 2/50 X 1/25 2/50 2/50 2/50 2/50 X
-0.1 ~ 2.4 5/120 5/120 5/120 2/48 2/48 2/48 X 1/24 2/48 2/48 2/48 2/48 X
-0.1 ~ 2 5/100 5/100 5/100 2/40 2/40 2/40 X 1/20 2/40 2/40 2/40 2/40 X
-0.1 ~ 1.5 5/75 5/75 5/75 2/30 2/30 2/30 X 2/30 2/30 2/30 2/30 2/30 X
-0.1 ~ 1 10/100 10/100 10/100 5/50 5/50 5/50 X 2/20 5/50 5/50 5/50 5/50 X
-0.1 ~ 0.9 10/90 10/90 10/90 5/45 5/45 5/45 X 2/18 5/45 5/45 5/45 5/45 X
-0.1 ~ 0.6 10/60 10/60 10/60 5/30 5/30 5/30 X 5/30 5/30 5/30 5/30 5/30 X
-0.1 ~ 0.5 20/100 20/100 20/100 10/50 10/50 10/50 X 5/25 5/25 5/25 5/25 5/25 X
-0.1 ~ 0.4 20/80 20/80 20/80 10/40 10/40 10/40 X 5/20 10/40 10/40 10/40 10/40 X
-0.1 ~ 0.3 20/60 20/60 20/60 10/30 10/30 10/30 X 5/15 10/30 10/30 10/30 10/30 X
-0.1 ~ 0.2 20/40 20/40 20/40 10/20 10/20 10/20 X 5/25 5/25 5/25 5/25 5/25 X
-0.1 ~ 0.1 50/50 50/50 50/50 20/20 20/20 20/20 X 10/10 20/20 20/20 20/20 20/20 X
-0.1 ~ 0.06 50/30 50/30 50/30 20/12 20/12 20/12 X 20/12 20/12 20/12 20/12 20/12 X
X : Not available
