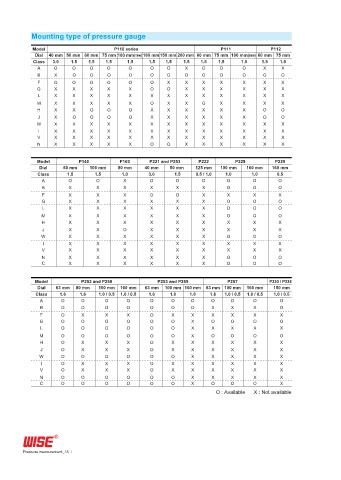

Mounting type of pressure gauge

Model P110 series P111 P112
Dial 40 mm 50 mm 60 mm 75 mm 100 mm(new) 100 mm150 mm 200 mm 60 mm 75 mm 100 mm(new) 60 mm 75 mm
Class 3.0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
A O O O O O O O X O O O X X
B X O O O O O O O O O O O O
F O O O O O O X X X X X X X
G X X X X X O O X X X X X X
L X X X X X X X X X X X X X
M X X X X X O X X O X X X X
H X X O O O X X X X X X O O
J X O O O O X X X X X X O O
W X X X X X X X X X X X X X
I X X X X X X X X X X X X X
V X X X X X X X X X X X X X
N X X X X X O O X X X X X X

Model P140 P163 P221 and P253 P222 P228 P229
Dial 60 mm 100 mm 80 mm 40 mm 50 mm 125 mm 100 mm 160 mm 160 mm
Class 1.5 1.5 1.0 3.0 1.5 0.5 / 1.0 1.0 1.0 0.5
A O O X O O O O O O
B X X X X X X O O O
F X X X O O X X X X
G X X X X X X O O O
L X X X X X X O O O
M X X X X X X O O O
H X X X X X X X X X
J X X O X X X X X X
W X X X X X X O O O
I X X X X X X X X X
V X X X X X X X X X
N X X X X X X O O O
C X X X X X X O O O

Model P252 and P258 P253 and P259 P257 P330 / P335
Dial 63 mm 80 mm 100 mm 160 mm 63 mm 100 mm 160 mm 63 mm 100 mm 160 mm 150 mm
Class 1.6 1.6 1.0 / 0.5 1.0 / 0.5 1.6 1.0 1.0 1.6 1.0 / 0.5 1.0 / 0.5 1.0 / 0.5
A O O O O O O O O O O O
B O O O O O O O X X X O
F O X X X O X X X X X X
G O O O O O O X O O O O
L O O O O O O X X X X X
M O O O O O O X O O O O
H O X X X O X X X X X X
J O X X X O X X X X X X
W O O O O O O X X X X X
I O X X X O X X X X X X
V O X X X O X X X X X X
N O O O O O O X X X X X
C O O O O O O X O O O X
O : Available X : Not available
