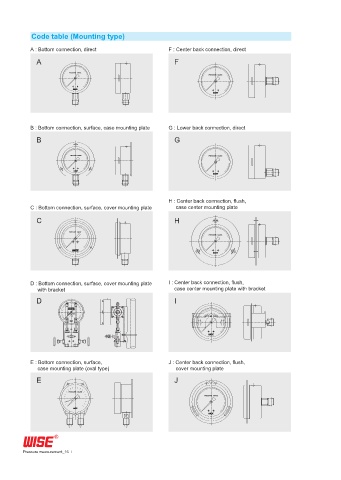

Code table (Mounting type)

A : Bottom connection, direct F : Center back connection, direct
A F

B : Bottom connection, surface, case mounting plate G : Lower back connection, direct
B G

H : Center back connection, flush,
C : Bottom connection, surface, cover mounting plate case center mounting plate

C H

D : Bottom connection, surface, cover mounting plate I : Center back connection, flush,
with bracket case center mounting plate with bracket
D I

E : Bottom connection, surface, J : Center back connection, flush,
case mounting plate (oval type) cover mounting plate
E J
