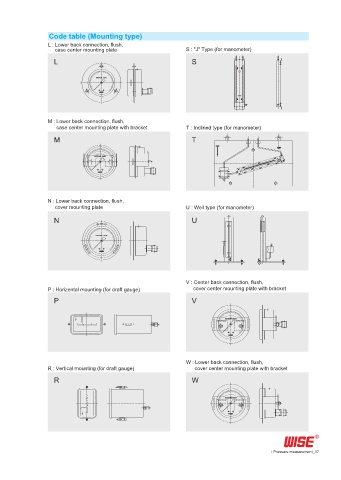

Code table (Mounting type)
L : Lower back connection, flush,
case center mounting plate S : "J" Type (for manometer)
L S

M : Lower back connection, flush,
case center mounting plate with bracket T : Inclined type (for manometer)

M T

N : Lower back connection, flush,
cover mounting plate U : Well type (for manometer)

N U

V : Center back connection, flush,
P : Horizental mounting (for draft gauge) cover center mounting plate with bracket
P V

W : Lower back connection, flush,
R : Vertical mounting (for draft gauge) cover center mounting plate with bracket
R W
