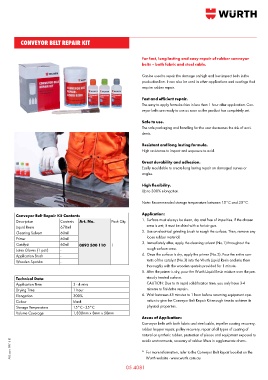

Page 334 - Wurth Total Catalogue

CONVEYOR BELT REPAIR KIT

For fast, long lasting and easy repair of rubber conveyor
belts – both fabric and steel cable.

Can be used to repair the damage on high and low impact belts in the
production line. It can also be used in other applications and coatings that
require rubber repair.

Fast and efficient repair.
The easy to apply formula dries in less than 1 hour after application. Con-
veyor belts are ready to use as soon as the product has completely set.

Safe to use.
The safe packaging and handling for the user decreases the risk of acci-
dents.

Resistant and long lasting formula.
High resistance to impact and exposure to acid.

Great durability and adhesion.
Easily mouldable to create long lasting repair on damaged curves or
angles.

High flexibility.
Up to 300% elongation.

Note: Recommended storage temperature between 15°C and 35°C.

Conveyor Belt Repair Kit Contents Application:
Description Contents Art. No. Pack Qty. 1. Surface must always be clean, dry and free of impurities. If the chosen
Liquid Resin 670ml area is wet, it must be dried with a hot air gun.
Cleaning Solvent 60ml 2. Use an electrical grinding brush to rough the surface. Then, remove any
Primer 60ml loose rubber material.
Catalyst 60ml 0893 500 110 1 3. Immediately after, apply the cleaning solvent (No.1) throughout the
Latex Gloves (1 pair) - rough surface area.
Application Brush - 4. Once the surface is dry, apply the primer (No.2). Pour the entire con-
Wooden Spatula - tents of the catalyst (No.3) into the Wurth Liquid Resin and mix them
thoroughly with the wooden spatula provided for 1 minute.
5. After the primer is dry, pour the Wurth Liquid Resin mixture over the pre-
Technical Data viously treated surface.
Application Time 3 - 4 mins CAUTION: Due to its rapid solidification time, you only have 3-4
Drying Time 1 hour minutes to finish the repairs.
Elongation 300% 6. Wait between 45 minutes to 1 hour before resuming equipment ope-
Colour black ration to give the Conveyor Belt Repair Kit enough time to achieve its
Storage Temperature 15°C - 35°C physical properties.
Volume Coverage 1,830mm x 8mm x 50mm
Areas of Application:
Conveyor belts with both fabric and steel cable, impeller coating recovery,
rubber hopper repair, pulley recovery, repair of all types of coating of
natural or synthetic rubber, protection of pieces and equipment exposed to
AUS. pub. 09/15 © * For more information, refer to the Conveyor Belt Repair booklet on the
acidic environments, recovery of rubber lifters in agglomerate drums.

Wurth website - www.wurth.com.au.

05 4081
