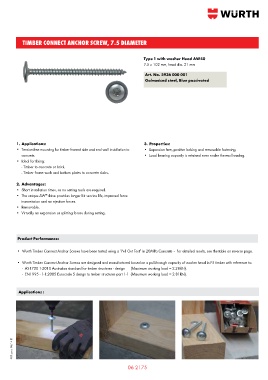

Page 440 - Wurth Total Catalogue

timber connect anchor screw, 7.5 Diameter

Type 1 with washer Head AW40
7.5 x 102 mm, head dia. 21 mm

Art. No. 5936 000 001
Galvanised steel, Blue passivated

1. Applications: 3. Properties:
• Tension-free mounting for timber framed side and end wall installation to • Expansion free, positive locking and removable fastening.
concrete. • Load bearing capacity is retained even under thermal loading.
• Ideal for fixing:
- Timber to concrete or brick
- Timber frame work and bottom plates to concrete slabs.

2. Advantages:
• Short installation times, as no setting tools are required.
• The unique AW drive provides longer bit service life, improved force
®
transmission and no ejection forces.
• Removable.
• Virtually no expansion or splitting forces during setting.

Product Performance:

• Wurth Timber Connect Anchor Screws have been tested using a ‘Pull Out Test” in 20MPa Concrete – For detailed results, see the table on reverse page.

• Wurth Timber Connect Anchor Screws are designed and manufactured based on a pull-through capacity of washer head in F5 timber with reference to:
- AS1720 1-2010 Australian standard for timber structures - design (Maximum working load = 2.28kN).
- EN1995 - 1-1:2005 Eurocode 5 design to timber structures part 1-1 (Maximum working load = 2.81kN).

Applications :
