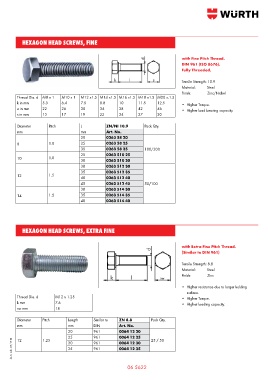

Page 607 - Wurth Total Catalogue

HEXAGON HEAD SCREWS, FINE

with Fine Pitch Thread.
DIN 961 (ISO 8676).
Fully Threaded.

Tensile Strength: 10.9
Material: Steel
Finish: Zinc/Nickel
Thread Dia. d M8 x 1 M10 x 1 M12 x1.5 M14 x1.5 M16 x1.5 M18 x1.5 M20 x.1.5
k in mm 5.3 6.4 7.5 8.8 10 11.5 12.5 • Higher Torque.
e in mm 22 26 30 34 38 42 46 • Higher load bearing capacity.
s in mm 13 17 19 22 24 27 30

Diameter Pitch L ZN/NI 10.9 Pack Qty.
mm mm Art. No.
20 0263 58 20
8 1.0 25 0263 58 25
35 0263 58 35 100/200
25 0263 510 25
10 1.0 30 0263 510 30
30 0263 512 30
35 0263 512 35
12 1.5
40 0263 512 40
45 0263 512 45 50/100
30 0263 514 30
14 1.5 35 0263 514 35
40 0263 514 40

HEXAGON HEAD SCREWS, EXTRA FINE

with Extra Fine Pitch Thread.
(Similar to DIN 961)

Tensile Strength: 8.8
Material: Steel
Finish: Zinc
sw
• Higher resistance due to larger holding
surface.
Thread Dia. d M12 x 1.25 • Higher Torque.
k mm 7.6 • Higher loading capacity.
sw mm 18

Diameter Pitch Length Similar to ZN 8.8 Pack Qty.
mm mm DIN Art. No.
20 961 0064 12 20
25 961 0064 12 25 25 / 50
1.25
12
AUS. pub. 05/17 © 35 961 0064 12 35
0064 12 30
30
961
06 5622
