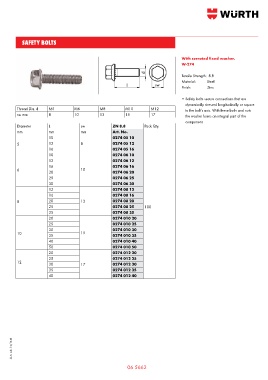

Page 611 - Wurth Total Catalogue

SAFETY BOLTS

With serrated fixed washer.
W-274

Tensile Strength: 8.8
Material: Steel
sw
Finish: Zinc

• Safety bolts secure connections that are
dynamically stressed longitudinally or square
Thread Dia. d M5 M6 M8 M10 M12 to the bolt’s axis. With these bolts and nuts
sw mm 8 10 13 15 17 the washer forms an integral part of the
component.
Diameter L sw ZN 8.8 Pack Qty.
mm mm mm Art. No.
10 0274 05 10
5 12 8 0274 05 12
16 0274 05 16
10 0274 06 10
12 0274 06 12
16 0274 06 16
6 20 10 0274 06 20
25 0274 06 25
30 0274 06 30
12 0274 08 12
16 0274 08 16
8 20 13 0274 08 20
25 0274 08 25 100
35 0274 08 35
20 0274 010 20
25 0274 010 25
30 0274 010 30
10 35 15 0274 010 35
40 0274 010 40
50 0274 010 50
20 0274 012 20
25 0274 012 25
12 30 17 0274 012 30

35 0274 012 35
40 0274 012 40

AUS. pub. 12/16 ©

06 5662
