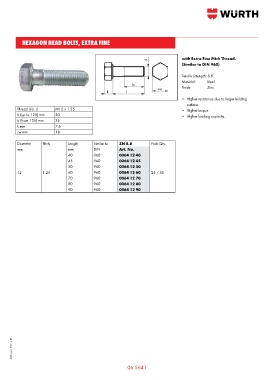

Page 608 - Wurth Total Catalogue

heXaGon head BoLts, eXtra FIne

with Extra Fine Pitch Thread.
d
(Similar to DIN 960)

Tensile Strength: 8.8
Material: Steel
b
sw Finish: Zinc
k l
• Higher resistance due to larger holding
surface.
Thread dia. d M12 x 1.25 • Higher torque.
b (up to 125) mm 30 • Higher loading capacity.
b (from 125) mm 36
k mm 7.6
sw mm 18

Diameter Pitch Length Similar to ZN 8.8 Pack Qty.
mm mm DIN Art. No.
40 960 0064 12 40
45 960 0064 12 45
50 960 0064 12 50
12 1.25 60 960 0064 12 60 25 / 50
70 960 0064 12 70
80 960 0064 12 80
90 960 0064 12 90
