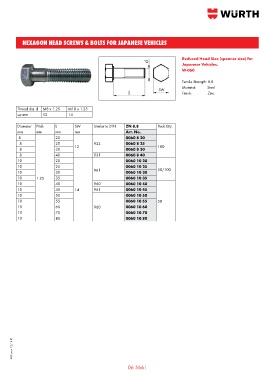

Page 610 - Wurth Total Catalogue

HEXAGON HEAD SCREWS & BOLTS FOR JAPANESE VEHICLES

Reduced Head Size (spanner size) for
Japanese Vehicles.
W-060

Tensile Strength: 8.8
Material: Steel
SW
Finish: Zinc

Thread dia. d M8 x 1.25 M10 x 1.25
sw mm 12 14

Diameter Pitch L SW Similar to DIN ZN 8.8 Pack Qty.
mm mm mm mm Art. No.
8 20 0060 8 20
8 25 933 0060 8 25
8 30 12 0060 8 30 100
8 40 931 0060 8 40
10 20 0060 10 20
10 25 0060 10 25
10 30 961 0060 10 30 50/100
10 1.25 35 0060 10 35
10 40 960 0060 10 40
10 45 14 961 0060 10 45
10 50 0060 10 50
10 55 0060 10 55 50
10 60 960 0060 10 60
10 70 0060 10 70
10 80 0060 10 80
