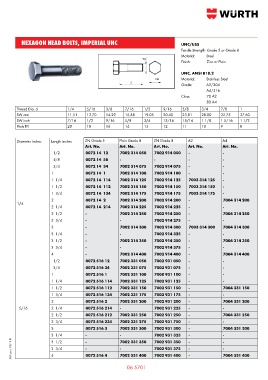

Page 614 - Wurth Total Catalogue

HEXAGON HEAD BOLTS, IMPERIAL UNC UNC/USS

Tensile Strength: Grade 5 or Grade 8
Material: Steel
Finish: Zinc or Plain

UNC, ANSI B18.2
sw Material: Stainless Steel
Grade: A2/304
A4/316
Class: 70 A2
80 A4
Thread Dia. d 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1
SW mm 11.11 12.70 14.29 15.88 19.05 20.40 23.81 28.00 32.75 37.60
SW inch 7/16 1/2 9/16 5/8 3/4 13/16 15/16 1 1/8 1 5/16 1 1/2
Pitch TPI 20 18 16 14 13 12 11 10 9 8

Diameter inches Length inches ZN Grade 5 Plain Grade 8 ZN Grade 8 A2 A4
Art. No. Art. No. Art. No. Art. No. Art. No.
1/2 0072 14 12 7002 314 050 7002 914 050 - -
5/8 0072 14 58 - - - -
3/4 0072 14 34 7002 314 075 7002 914 075 - -
1 0072 14 1 7002 314 100 7002 914 100 - -
1 1/4 0072 14 114 7002 314 125 7002 914 125 7003 314 125 -
1 1/2 0072 14 112 7002 314 150 7002 914 150 7003 314 150 -
1 3/4 0072 14 134 7002 314 175 7002 914 175 7003 314 175 -
2 0072 14 2 7002 314 200 7002 914 200 - 7004 314 200
1/4
2 1/4 0072 14 214 7002 314 225 7002 914 225 - -
2 1/2 - 7002 314 250 7002 914 250 - 7004 314 250
2 3/4 - - 7002 914 275 - -
3 - 7002 314 300 7002 914 300 7003 314 300 7004 314 300
3 1/4 - - 7002 914 325 - -
3 1/2 - 7002 314 350 7002 914 350 - 7004 314 350
3 3/4 - - 7002 914 375 - -
4 - 7002 314 400 7002 914 400 - 7004 314 400
1/2 0072 516 12 7002 331 050 7002 931 050 - -
3/4 0072 516 34 7002 331 075 7002 931 075 - -
1 0072 516 1 7002 331 100 7008 931 100 - -
1 1/4 0072 516 114 7002 331 125 7002 931 125 - -
1 1/2 0072 516 112 7002 331 150 7002 931 150 - 7004 331 150
1 3/4 0072 516 134 7002 331 175 7002 931 175 - -
2 0072 516 2 7002 331 200 7002 931 200 - 7004 331 200
5/16 2 1/4 0072 516 214 - 7002 931 225 - -
2 1/2 0072 516 212 7002 331 250 7002 931 250 - 7004 331 250
2 3/4 0072 516 234 7002 331 275 7002 931 750 - -
3 0072 516 3 7002 331 300 7002 931 300 - 7004 331 300
3 1/4 - - - 7002 331 350 7002 931 325 - - - -
AUS. pub. 10/15 © 3 3/4 - 0072 516 4 - 7002 331 400 7002 931 375 - - - 7004 331 400
3 1/2
7002 931 350
4
7002 931 400
