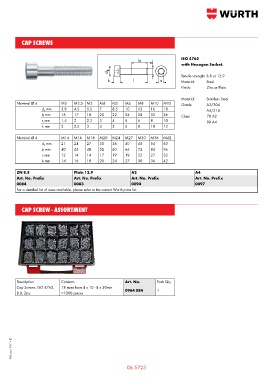

Page 620 - Wurth Total Catalogue

cap screws

ISO 4762
with Hexagon Socket.

Tensile strength: 8.8 or 12.9
Material: Steel
Finish: Zinc or Plain

Material: Stainless Steel
Nominal Ø d M2 M2.5 M3 M4 M5 M6 M8 M10 M12 Grade: A2/304
d k mm 3.8 4.5 5.5 7 8.5 10 13 16 18 A4/316
b mm 16 17 18 20 22 24 28 32 36 Class: 70 A2
s mm 1.5 2 2.2 3 4 5 6 8 10 80 A4
k mm 2 2.5 3 4 5 6 8 10 12

Nominal Ø d M14 M16 M18 M20 M24 M27 M30 M36 M42
d k mm 21 24 27 30 36 40 45 54 63
b mm 40 44 48 52 60 66 72 84 96
s mm 12 14 14 17 19 19 22 27 32
k mm 14 16 18 20 24 27 30 36 42

ZN 8.8 Plain 12.9 A2 A4
Art. No. Prefix Art. No. Prefix Art. No. Prefix Art. No. Prefix
0084 0083 0094 0097
For a detailed list of sizes available, please refer to the current Wurth price list.

cap screw - assortment

Description Contents Art. No. Pack Qty.
Cap Screws, ISO 4762, 18 sizes from 4 x 10 - 8 x 30mm 0964 084 1
8.8, Zinc =1080 pieces

AUS. pub. 01/14 ©

06 5723
