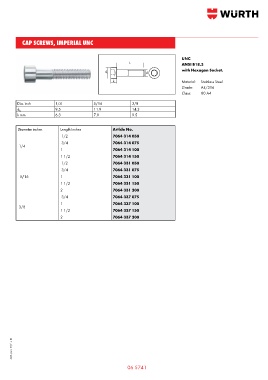

Page 621 - Wurth Total Catalogue

CAP SCREWS, IMPERIAL UNC

UNC
L ANSI B18.3
with Hexagon Socket.
d k d
k Material: Stainless Steel
Grade: A4/316
Class: 80 A4

Dia. inch 1/4 5/16 3/8
9.5 11.9 14.3
d k
k mm 6.3 7.9 9.5

Diameter inches Length Inches Article No.
1/2 7064 314 050
3/4 7064 314 075
1/4
1 7064 314 100
1 1/2 7064 314 150
1/2 7064 331 050
3/4 7064 331 075
5/16 1 7064 331 100
1 1/2 7064 331 150
2 7064 331 200
3/4 7064 337 075
1 7064 337 100
3/8
1 1/2 7064 337 150
2 7064 337 200
