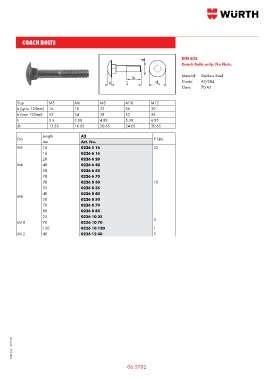

Page 626 - Wurth Total Catalogue
P. 626
COACH BOLTS
DIN 603
d
Coach Bolts only, No Nuts.
b Material: Stainless Steel
k l d k Grade: A2/304
Class: 70 A2
Size M5 M6 M8 M10 M12
b (up to 125mm) 16 18 22 26 30
b (over 125mm) 22 24 28 32 36
k 3.3 3.88 4.88 5.38 6.95
dk 13.55 16.55 20.65 24.65 30.65
Length A2
Dia P. Qty.
mm Art. No.
M5 16 0226 5 16 25
16 0226 6 16
20 0226 6 20
M6 40 0226 6 40
50 0226 6 50
70 0226 6 70
30 0226 8 30 10
35 0226 8 35
40 0226 8 40
M8
50 0226 8 50
70 0226 8 70
80 0226 8 80
25 0226 10 25 5
M10 70 0226 10 70
120 0226 10 120 1
M12 40 0226 12 40 5
