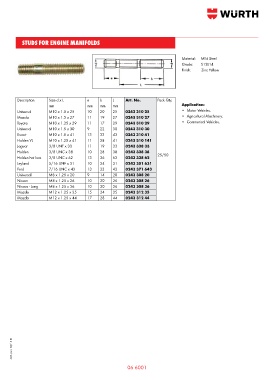

Page 627 - Wurth Total Catalogue
P. 627
STUDS FOR ENGINE MANIFOLDS
Material: Mild Steel
Grade: S12L14
Finish: Zinc Yellow
Description Size d x L e b L Art. No. Pack Qty.
mm mm mm mm Application:
Universal M10 x 1.5 x 25 10 20 25 0243 310 25 • Motor Vehicles.
Mazda M10 x 1.5 x 27 11 19 27 0243 310 27 • Agricultural Machinery.
Toyota M10 x 1.25 x 29 11 17 29 0243 310 29 • Commerical Vehicles.
Universal M10 x 1.5 x 30 9 22 30 0243 310 30
Escort M10 x 1.5 x 41 13 33 43 0243 310 41
Holden VL M10 x 1.25 x 41 11 28 41 0243 310 141
Jaguar 3/8 UNF x 33 11 19 33 0243 338 33
Holden 3/8 UNC x 38 10 28 38 0243 338 38
Holden hot box 3/8 UNC x 62 13 36 62 0243 338 62 25/50
Leyland 5/16 UNF x 31 10 24 31 0243 351 631
Ford 7/16 UNC x 43 13 33 43 0243 371 643
Universal M8 x 1.25 x 20 9 14 20 0243 308 20
Nissan M8 x 1.25 x 26 10 20 26 0243 308 26
Nissan - Long M8 x 1.25 x 36 10 30 36 0243 308 36
Mazda M12 x 1.25 x 35 15 24 35 0243 312 35
Mazda M12 x 1.25 x 44 17 28 44 0243 312 44
AUS. pub. 04/15 ©
06 6001
