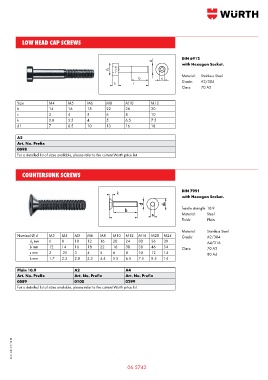

Page 622 - Wurth Total Catalogue
P. 622
low head cap screws
DIN 6912
with Hexagon Socket.
Material: Stainless Steel
Grade: A2/304
Class: 70 A2
Size M4 M5 M6 M8 M10 M12
b 14 16 18 22 26 30
s 3 4 5 6 8 10
k 2.8 3.5 4 5 6.5 7.5
d1 7 8.5 10 13 16 18
A2
Art. No. Prefix
0098
For a detailed list of sizes available, please refer to the current Wurth price list.
countersunk screws
DIN 7991
with Hexagon Socket.
Tensile strength: 10.9
Material: Steel
Finish: Plain
Material: Stainless Steel
Nominal Ø d M3 M4 M5 M6 M8 M10 M12 M16 M20 M24 Grade: A2/304
d mm 6 8 10 12 16 20 24 30 36 39 A4/316
k
b mm 12 14 16 18 22 16 30 38 46 54 Class: 70 A2
s mm 2 .25 3 4 5 6 8 10 12 14 80 A4
k mm 1.7 2.3 2.8 3.3 4.4 5.5 6.5 7.5 8.5 14
Plain 10.9 A2 A4
Art. No. Prefix Art. No. Prefix Art. No. Prefix
0089 0100 0299
For a detailed list of sizes available, please refer to the current Wurth price list.
AUS. pub. 01/14 ©
06 5742
