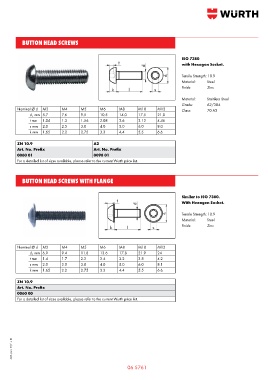

Page 623 - Wurth Total Catalogue
P. 623
button head screws
ISO 7380
with Hexagon Socket.
Tensile Strength: 10.9
Material: Steel
Finish: Zinc
Material: Stainless Steel
Grade: A2/304
Nominal Ø d M3 M4 M5 M6 M8 M10 M12 Class: 70 A2
d ₁ mm 5.7 7.6 9.5 10.5 14.0 17.5 21.0
t mm 1.04 1.3 1.56 2.08 2.6 3.12 4.46
s mm 2.0 2.5 3.0 4.0 5.0 6.0 8.0
k mm 1.65 2.2 2.75 3.3 4.4 5.5 6.6
ZN 10.9 A2
Art. No. Prefix Art. No. Prefix
0060 01 0098 01
For a detailed list of sizes available, please refer to the current Wurth price list.
button head screws with flange
Similar to ISO 7380.
With Hexagon Socket.
Tensile Strength: 10.9
Material: Steel
Finish: Zinc
Nominal Ø d M3 M4 M5 M6 M8 M10 M12
d ₁ mm 6.9 9.4 11.8 13.6 17.8 21.9 24
t mm 1.4 1.7 2.2 2.4 3.2 3.8 4.2
s mm 2.0 2.5 3.0 4.0 5.0 6.0 8.1
k mm 1.65 2.2 2.75 3.3 4.4 5.5 6.6
ZN 10.9
Art. No. Prefix
0060 00
For a detailed list of sizes available, please refer to the current Wurth price list.
