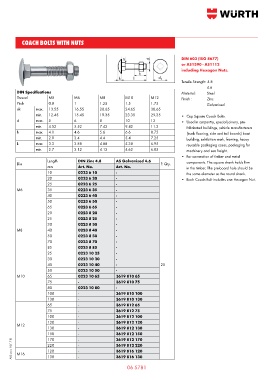

Page 625 - Wurth Total Catalogue

COACH BOLTS WITH NUTS

DIN 603 (ISO 8677)
or AS1390 - AS1112
including Hexagon Nuts.

Tensile Strength: 4.8
4.6
DIN Specifications Material: Steel
Thread M5 M6 M8 M10 M12 Finish : Zinc
Pitch 0.8 1 1.25 1.5 1.75 Galvanised
dk max. 13.55 16.55 20.65 24.65 30.65
min. 12.45 15.45 19.35 23.35 29.35 • Cup Square Coach Bolts.
d max. 5 6 8 10 12 • Used in carpentry, special joinery, pre-
min. 4.52 5.52 7.42 9.42 11.3 fabricated buildings, vehicle manufacturers
h max. 4.1 4.6 5.6 6.6 8.75 (truck flooring, side and tail boards) boat
min. 2.9 3.4 4.4 5.4 7.25 building, exhibition work, framing, heavy
k max. 3.3 3.88 4.88 5.38 6.95 reusable packaging cases, packaging for
min. 2.7 3.12 4.12 4.62 6.05 machinery and sea freight.
• For connection of timber and metal
Length DIN Zinc 4.8 AS Galvanised 4.6 components. The square shank holds firm
Dia P. Qty.
mm Art. No. Art. No. in the timber. The pre-board hole should be
10 0223 6 10 - the same diameter as the round shank.
20 0223 6 20 - • Each Coach Bolt includes one Hexagon Nut.
25 0223 6 25 -
M6 35 0223 6 35 -
40 0223 6 40 -
50 0223 6 50 -
65 0223 6 65 -
20 0223 8 20 -
25 0223 8 25 -
30 0223 8 30 -
M8 40 0223 8 40 -
50 0223 8 50 -
70 0223 8 70 -
85 0223 8 85 -
25 0223 10 25 -
30 0223 10 30 -
40 0223 10 40 - 25
50 0223 10 50 -
M10 65 0223 10 65 3619 810 65
75 - 3619 810 75
80 0223 10 80 -
100 - 3619 810 100
130 - 3619 810 130
65 - 3619 812 65
75 - 3619 812 75
100 - 3619 812 100
120 - 3619 812 120
M12
130 - 3619 812 130
150 - - 3619 812 150
3619 812 170
170
AUS. pub. 10/17 © M16 220 - - - 3619 812 220
3619 816 120
120
3619 816 130
130
