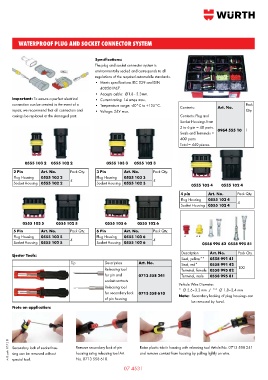

Page 676 - Wurth Total Catalogue

waterproof plug and socket connector system

Specifications:
The plug and socket connector system is
environmentally sealed and corresponds to all
regulations of the required automobile standards.
• Meets specifications IEC 529 and DIN
40050 IP67.
• Accepts cable: Ø1.8 - 3.3mm.
Important: To ensure a perfect electrical • Current rating: 14 amps max.
connection can be created in the event of a • Temperature range: -40°C to +125°C. Pack
repair, we recommend that all connectors and • Voltage: 24V max. Contents: Art. No. Qty.
casings be replaced at the damaged part. Contents: Plug and
Socket Housings from
2 to 6 pin = 40 parts. 0964 555 10 1
Seals and Terminals =
400 parts
Total = 440 pieces.

0555 103 2 0555 102 2 0555 103 3 0555 102 3

2 Pin Art. No. Pack Qty. 3 Pin Art. No. Pack Qty.
Plug Housing 0555 103 2 Plug Housing 0555 103 3
Socket Housing 0555 102 2 4 Socket Housing 0555 102 3 4 0555 103 4 0555 102 4

4 pin Art. No. Pack Qty.
Plug Housing 0555 103 4
Socket Housing 0555 102 4 4

0555 103 5 0555 102 5 0555 103 6 0555 102 6
5 Pin Art. No. Pack Qty. 6 Pin Art. No. Pack Qty.
Plug Housing 0555 103 5 Plug Housing 0555 103 6 * **
Socket Housing 0555 102 5 4 Socket Housing 0555 102 6 4 0558 995 82 0558 995 81

Description Art. No. Pack Qty.
Ejector Tools:
Seal, yellow** 0558 991 41
Tip Description Art. No. Seal, red* 0558 991 42
Releasing tool Terminal, female 0558 995 82 100
for pin and 0713 558 241 Terminal, male 0558 995 81
socket contacts
Releasing tool Vehicle Wire Diameter:
* Ø 2.6–3.3 mm / ** Ø 1.8–2.4 mm
for secondary lock 0713 558 610 Note: Secondary locking of plug housings can
of pin housing
be removed by hand.
Note on application:

AUS. pub. 07/12 © Secondary lock of socket hou- Remove secondary lock of pin Raise plastic tab in housing with releasing tool Article No. 0713 558 241

and remove contact from housing by pulling lightly on wire.
housing using releasing tool Art.
sing can be removed without
No. 0713 558 610.
special tool.
