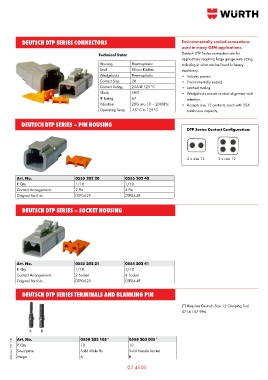

Page 674 - Wurth Total Catalogue

DEUTSCH DTP SERIES CONNECTORS Environmentally sealed connections
used in many OEM applications.
Technical Data: Deutsch DTP Series connectors are for
applications requiring large gauge wire sizing
Housing Thermoplastic including in what can be found in heavy
Seal Silicon Rubber machinery.
Wedgelocks Thermoplastic • Industry proven.
Contact Size 20 • Environmentally sealed.
Contact Rating 25A @ 125°C • Latched mating.
Shock 50G • Wedgelocks ensure contact alignment and
IP Rating 67 retention.
Vibration 20G rms 10 – 2000Hz • Accepts size 12 contacts, each with 25A
Operating Temp. -55°C to 125°C continuous capacity.

DEUTSCH DTP SERIES – PIN HOUSING
DTP Series Contact Configuration:

2 x size 12 3 x size 12

Art. No. 0555 202 20 0555 202 40
P. Qty 1/10 1/10
Contact Arrangements 2 Pin 4 Pin
Original Part No. DTP04-2P DTP04-4P

DEUTSCH DTP SERIES – SOCKET HOUSING

Art. No. 0555 202 21 0555 202 41
P. Qty 1/10 1/10
Contact Arrangements 2 Socket 4 Socket
Original Part No. DTP04-2S DTP04-4P

DEUTSCH DTP SERIES TERMINALS AND BLANKING PIN

(*) Requires Deutsch Size 12 Crimping Tool
0714 107 996

A B 0558 203 105* 0558 203 005*
Art. No.
AUS. pub. 10/17 © P. Qty 10 10
Description
Solid Male Pin
Solid Female Socket
A
B
