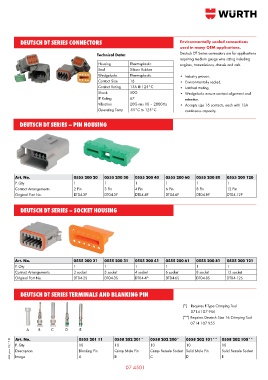

Page 670 - Wurth Total Catalogue

DEUTSCH DT SERIES CONNECTORS Environmentally sealed connections
used in many OEM applications.
Technical Data: Deutsch DT Series connectors are for applications
requiring medium gauge wire sizing including
Housing Thermoplastic engines, transmissions, chassis and cab.
Seal Silicon Rubber
Wedgelocks Thermoplastic • Industry proven.
Contact Size 16 • Environmentally sealed.
Contact Rating 13A @ 125°C • Latched mating.
Shock 50G • Wedgelocks ensure contact alignment and
IP Rating 67 retention.
Vibration 20G rms 10 – 2000Hz • Accepts size 16 contacts, each with 13A
Operating Temp -55°C to 125°C continuous capacity.

DEUTSCH DT SERIES – PIN HOUSING

Art. No. 0555 200 20 0555 200 30 0555 200 40 0555 200 60 0555 200 80 0555 200 120
P. Qty 1 1 1 1 1 1
Contact Arrangements 2 Pin 3 Pin 4 Pin 6 Pin 8 Pin 12 Pin
Original Part No. DT04-2P DT04-3P DT04-4P DT04-6P DT04-8P DT04-12P

DEUTSCH DT SERIES – SOCKET HOUSING

Art. No. 0555 200 21 0555 200 31 0555 200 41 0555 200 61 0555 200 81 0555 200 121
P. Qty 1 1 1 1 1 1
Contact Arrangements 2 socket 3 socket 4 socket 6 socket 8 socket 12 socket
Original Part No. DT04-2S DT04-3S DT04-4P DT04-6S DT04-8S DT04-12S

DEUTSCH DT SERIES TERMINALS AND BLANKING PIN

(*) Requires F-Type Crimping Tool
0714 107 956
(**) Requires Deutsch Size 16 Crimping Tool
0714 107 955
A B C D 0555 201 11 0558 202 201* 0558 202 200* 0558 202 101** 0558 202 100**
E
Art. No.
AUS. pub. 10/17 © P. Qty 10 10 10 10 10
Description
Crimp Male Pin
Blanking Pin
Crimp Female Socket Solid Male Pin
Solid Female Socket
E
D
C
B
A
07 4501
