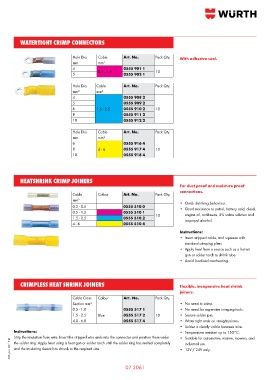

Page 665 - Wurth Total Catalogue

WATERTIGHT CRIMP CONNECTORS

Hole Dia. Cable Art. No. Pack Qty. With adhesive seal.
mm mm²
4 0555 901 1
5 0.5 - 1.5 0555 902 1 10

Hole Dia. Cable Art. No. Pack Qty.
mm² mm²
4 0555 908 2
5 0555 909 2
6 1.5 - 2.5 0555 910 2 10
8 0555 911 2
10 0555 912 2

Hole Dia. Cable Art. No. Pack Qty.
mm mm²
6 0555 916 4
8 4 - 6 0555 917 4 10
10 0555 918 4

HEATSHRINK CRIMP JOINERS
For dust proof and moisture proof
connections.
Cable Colour Art. No. Pack Qty.
mm² • Quick shrinking behaviour.
0.2 - 0.5 0555 510 0 • Good resistance to petrol, battery acid, diesel,
0.5 - 1.5 0555 510 1 engine oil, antifreeze, 5% saline solution and
1.5 - 2.5 0555 510 2 10 isopropyl alcohol.
4 - 6 0555 510 4
Instructions:
• Insert stripped cable, and squeeze with
standard crimping pliers.
• Apply heat from a source such as a hot-air
gun or solder torch to shrink tube.
• Avoid localised overheating.

CRIMPLESS HEAT SHRINK JOINERS Flexible, inexpensive heat shrink
joiners.
Cable Cross Colour Art. No. Pack Qty.
Section mm² • No need to crimp.
0.5 - 1.0 0555 517 1 • No need for expensive crimping tools.
1.5 - 2.5 Blue 0555 517 2 10 • Secure solder join.
4.0 - 6.0 0555 517 4 • Water tight ends on straight joiners.
• Solder is clearly visible between wire.
Instructions: • Temperature resistant up to 150°C.
AUS. pub. 02/17 © Strip the insulation from wire. Insert the stripped wire ends into the connector and position them under • 12V / 24V only.
• Suitable for automotive, marine, mowers, and
the solder ring. Apply heat using a heat gun or solder torch until the solder ring has melted completely
industrial use.
and the insulating sleeve has shrunk to the required size.
