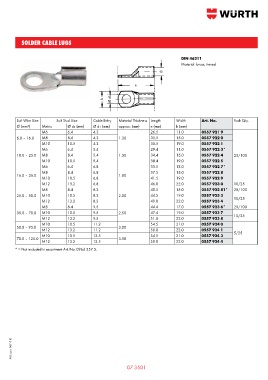

Page 667 - Wurth Total Catalogue

SOLDER CABLE LUGS

a DIN 46211
Material: brass, tinned
d₁

e

b Ø d₂

Suit Wire Size Suit Stud Size Cable Entry Material Thickness Length Width Art. No. Pack Qty.
Ø (mm²) Metric Ø d₂ Ø d₁ approx. (mm) e (mm) b (mm)
M6 6.4 4.3 26.5 11.0 0557 921 9
6.0 – 16.0 M8 8.4 4.3 1.20 31.5 15.0 0557 922 0
M10 10.5 4.3 35.5 19.0 0557 922 1
M6 6.4 5.4 29.4 11.0 0557 922 3*
10.0 – 25.0 M8 8.4 5.4 1.50 34.4 15.0 0557 922 4 25/100
M10 10.5 5.4 38.4 19.0 0557 922 5
M6 6.4 6.8 33.5 13.0 0557 922 7*
M8 8.4 6.8 37.5 15.0 0557 922 8
16.0 – 35.0 1.80
M10 10.5 6.8 41.5 19.0 0557 922 9
M12 13.2 6.8 46.0 22.0 0557 923 0 10/25
M8 8.4 8.2 40.5 15.0 0557 922 81* 25/100
25.0 – 50.0 M10 10.5 8.2 2.00 44.5 19.0 0557 923 3
M12 13.2 8.2 49.0 22.0 0557 923 4 10/25
M8 8.4 9.5 44.4 17.0 0557 923 6* 25/100
35.0 – 70.0 M10 10.5 9.5 2,50 47.4 19.0 0557 923 7 10/25
M12 13.2 9.5 51.8 22.0 0557 923 8
M10 10.5 11.2 54.5 21.0 0557 924 0
50.0 – 95.0 3.00
M12 13.2 11.2 58.0 22.0 0557 924 1
M10 10.5 13.5 54.5 21.0 0557 924 3 5/25
70.0 – 120.0 3.50
M12 13.2 13.5 58.0 22.0 0557 924 4
* = Not included in assortment Art. No. 0964 557 5.
