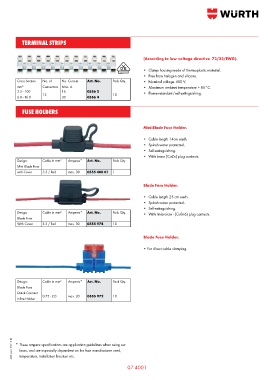

Page 668 - Wurth Total Catalogue

TERMINAL STRIPS

(According to low voltage directive 73/23/EWG).

• Clamp housing made of thermoplastic material.
• Free from halogen and silicone.
Cross Section No. of No. Current Art. No. Pack Qty. • Nominal voltage 450 V.
mm² Connectors Max. A • Maximum ambient temperature + 85°C.
2.5 - 100 16 0556 3 • Flame-retardant/self-extinguishing.
6.0–16.0 12 30 0556 4 10

FUSE HOLDERS

Mini-Blade Fuse Holder.

• Cable length 14cm each.
• Splash-water protected.
• Self-extinguishing.
• With brass (CuZn) plug contacts.
Design: Cable in mm² Amperes* Art. No. Pack Qty.
Mini Blade Fuse
with Cover 3.3 / Red max. 30 0555 400 01 1

Blade Fuse Holder.

• Cable length 25 cm each.
• Splash-water protected.
• Self-extinguishing.
Design: Cable in mm² Amperes* Art. No. Pack Qty. • With tin-bronze - (CuSn6) plug contacts.
Blade Fuse
With Cover 3.3 / Red max. 30 0555 974 10

Blade Fuse Holder.

• For direct cable clamping.

Design: Cable in mm² Amperes* Art. No. Pack Qty.
Blade Fuse
Quick Connect
Inline Holder 0.75 - 2.0 max. 20 0555 972 10

AUS. pub. 01/16 © * These ampere specifications are application guidelines when using our
fuses, and are especially dependent on the fuse manufacturer used,
temperature, installation location etc.

07 4001
